Multi Channels Profibus Signal Slip Ring Capsule Flange Electrical Connector

CENO Electronics Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Multi Channels Profibus Signal Slip Ring Capsule Flange Electrical Connector from wholesalers

    Buy cheap Multi Channels Profibus Signal Slip Ring Capsule Flange Electrical Connector from wholesalers
    • Buy cheap Multi Channels Profibus Signal Slip Ring Capsule Flange Electrical Connector from wholesalers
    • Buy cheap Multi Channels Profibus Signal Slip Ring Capsule Flange Electrical Connector from wholesalers
    • Buy cheap Multi Channels Profibus Signal Slip Ring Capsule Flange Electrical Connector from wholesalers

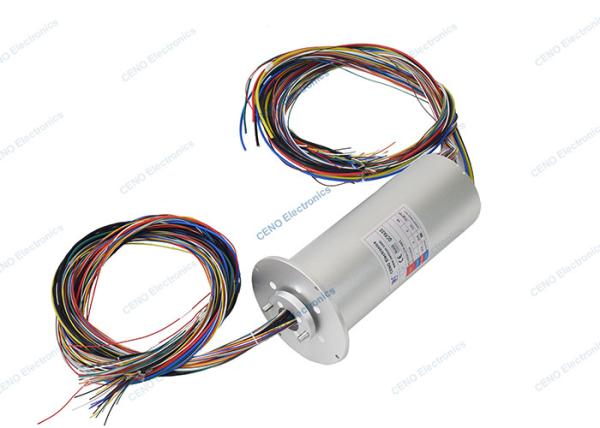

    Multi Channels Profibus Signal Slip Ring Capsule Flange Electrical Connector

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-07P-68S
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    Multi Channels Profibus Signal Slip Ring Capsule Flange Electrical Connector

    Multi Channels Profi Bus Signal Slip Ring Capsule Flange Electrical Swivel



    ECN000-07P-68S is CENO new product multi-channels slip ring with 2 group link bus signal which is designed to solve the digital communication between intelligent instruments and meters, controllers, actuators and other field devices in industrial sites, and the information transmission between these field control devices and advanced control systems. There is no interference between current and signal, and meets the requirements of EMC electromagnetic compatibility. More information please contact us freely.


    Features

    1. Multi-channels
    2. No interference between current and signals, no packet loss, no messy code, and low insert loss
    3. Can be integrated various data

    Applications

    • Industrial system
    • Manufacture machinery
    • Traffic control system
    • Internet of things
    • Medical equipment

    Optional

    • Circuit, Voltage, Current
    • Signals
    • Contact / Housing Materials
    • Protection grade
    • Working speed

    Specification


    ECN000-07P-68S

    Specification
    Current & Circuits75 circuits electric power and signals
    Rating Voltage0~380VAC/VDC
    Dielectric strength≥1500VAC@50Hz; ≥300VAC@50Hz
    Isolation resistance≥500MΩ@300VDC; ≥100MΩ@300VDC
    Contact resistance≤30mΩ (50rpm)
    Contact materialPrecious metal
    Housing materialAluminum Alloy + stainless steel
    Working temperature-20°C~+60°C
    Working humidity≤90%RH
    Protection GradeIP51
    Operating speed0~ 30 rpm
    Lead wire size

    AWG 10# 12# 20# Tin coated Teflon® UL

    8 core twisted shielded wire

    Lead wire lengthRotor:1500mm; Stator:1500mm
    External diameterØ110mm
    Installation wayFlange installation

    Outline drawing


    More informations


    Profi bus slip rings are critical components in many industrial applications that require reliable transmission of data in rotating machinery. These slip rings come with multi-channels, which enable high-speed and high-data transmission rates.
    Flange installation is a common mounting method for profi bus slip rings. This installation method ensures proper alignment and easy installation. Flange-mounted slip rings are also more stable and provide better support for the rotating machinery.
    Profi bus slip rings are designed for a wide range of industrial applications, including automation systems, robotics, and manufacturing processes. These slip rings offer multiple channels to enable the simultaneous transmission of data, power, and signals over a single unit.
    One of the key advantages of profi bus slip rings is their ability to operate in harsh environments. They are designed to withstand extreme temperatures, vibrations, and corrosive materials. This makes them ideal for applications in heavy- duty industries such as oil and gas, mining, and marine transportation.
    In conclusion, profi bus slip rings with multi-channels and flange installation are critical components in many industrial applications that require reliable transmission of data in rotating machinery. They offer a range of benefits that make them ideal for use in harsh environments and heavy-duty industries. If you're looking for a reliable and durable slip ring for your industrial needs, consider a profi bus slip ring with flange installation.

    Support and Services:

    Capsule Slip Ring Technical Support and Service

    We provide technical support and service for our Capsule Slip Ring products. Our team of experts is available to assist you with any questions you may have about the product, its installation, its use and maintenance. We also offer troubleshooting and repair services if the product requires it. If you need to replace any parts of the product, we can provide them to you quickly and at a competitive price.

    We also provide regular maintenance and inspection services for our Capsule Slip Ring products. This helps to ensure that the product is functioning properly and that it is in good condition. We also provide warranty coverage for our products, so you can rest assured that your purchase is protected.

    Our customer service team is available to answer any questions you may have about our Capsule Slip Ring products. We are dedicated to providing the best possible support and service for our customers, and we look forward to hearing from you.

    FAQ:

    Q1. What is CENO Capsule Slip Ring?
    A1. CENO Capsule Slip Ring, model number CCN-10J, is a rotary electrical connector, which can transmit power and signal from a stationary structure to a rotating one.
    Q2.Where is CENO Capsule Slip Ring made?
    A2. CENO Capsule Slip Ring is made in China.
    Q3.What certifications do CENO Capsule Slip Ring have?
    A3. CENO Capsule Slip Ring is certified by CE,RoHS,UL,ISO9001.
    Q4.What is the minimum order quantity of CENO Capsule Slip Ring?
    A4. The minimum order quantity of CENO Capsule Slip Ring is 1.
    Q5.What is the delivery time of CENO Capsule Slip Ring?
    A5. CENO Capsule Slip Ring is off the shelf and can be delivered quickly.
