    Id 50mm Ip67 Waterproof Slip Ring With Rotary Electric Power Joints

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN050-18P-IP67
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Id 50mm Ip67 Waterproof Slip Ring With Rotary Electric Power Joints

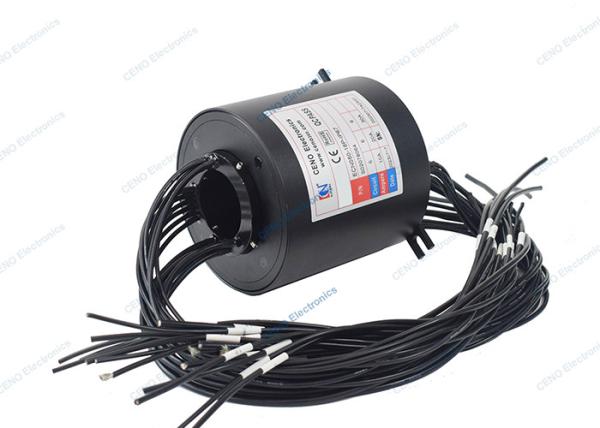

    IP67 Water Proof Function Electrical Slip Ring with Rotary Electric power joints


    ECN050-18P-IP67 is CENO function water proof slip ring with through hole and inner diameter Ø50mm, which is designed for the environments high humidity , corrosion, even for the under water. The water proof slip ring can be designed to multiple protection grade as the different working environment as IP65, IP66, IP67 and IP68. It’s often applied to the marine engineering, ships, port and navigation equipment. For more information about how CENO slip ring can fit your specific application, please contact us freely.


    Features

    • IP65, IP66, IP67, IP68 is option
    • Be able to bear high voltage
    • Can integrated variety of signals
    • Special Material & sealing forms
    • Install easily & transmit stably

    Applications

    • Boats and ship
    • Offshore equipment
    • Marine equipment
    • Filling machine
    • Medical equipment

    Optional

    • Circuits, Voltage, Current
    • Sealing forms
    • Contact / Housing Materials
    • Lead wire and size
    • Working speed

    Specification

    ECN050-18P-IP67

    Specification
    Current & Circuits6circuits*10A; 6circuits*20A; 6circuits*30A
    Rating Voltage0~380VAC/VDC
    Dielectric strength≥1000VAC@50Hz
    Isolation resistance≥500MΩ@500VDC
    Contact resistance wave range≤30mΩ (50rpm)
    Contact materialPrecious Metal
    Housing material

    Aluminum Alloy

    Working temperature-20°C~+60°C
    Working humidity≤60%RH
    Protection GradeIP67
    Operating speed0~ 30 rpm
    Lead wire sizeFlexible rubber hose
    Lead wire lengthRotor:500mm; Stator:500mm
    Inner diameterØ50mm
    External diameterØ135mm
    InstallationRotor side fixed on guest main shaft with screws

    Outline Drawing
