    Large Power Carbon Brush High Current Slip Ring IP54 With Electrical Power Collector

    Ask Lasest Price
    Brand Name : CENO
    Model Number : BHCN-C-14200-02P2-15S
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T,Paypal,Western Union
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    Large Power Carbon Brush High Current Slip Ring IP54 With Electrical Power Collector

    Large Power Carbon Brush Slip Ring with High Current Electrical Power Collector


    BHCN-C-14200-02P2-15S is CENO new product high current carbon brush slip ring which combined electrical power high current 200A and 100M Ethernet signal. The high current slip rings and high voltage slip rings are used for communication devices, large machining centers, antenna radar system, large cranes, mining machines, large cable reels. High voltage sometimes require more than 2000 volts and high current sometimes require 500 amperes. For more information please contact us.


    Features

    • Current 1-2000A Optional
    • Voltage 24-20000V Optional
    • Special design and easy maintenance. Excellent stain resistance, low VOC.

    Applications

    • Engineering machinery
    • Harbour machinery
    • Marine crane
    • Drilling platform
    • Offshore platform

    Optional

    • Circuit, Voltage, Current
    • Signals type
    • Contact / Housing Materials
    • Protection Grade
    • Working speed

    Specification

    BHCN-C-14200-02P2-15S

    Specification
    Current & Circuits

    13 circuits*200A (380V),1circuit * PE;


    2 circuits *10A

    6 circuits * Encoder Signal

    4 circuits * Torque meter signal

    1 circuit * Signal (spare)

    1 group * 100M Ethernet

    Rating Voltage

    0~380 VAC/VDC

    0~220 VAC/VDC

    Dielectric strength

    ≥1500VAC@50Hz

    ≥500VAC@60Hz

    Isolation resistance

    ≥500MΩ@500VDC

    ≥300MΩ@500VDC

    Contact resistance

    ≤30mΩ (50rpm)

    ≤30mΩ (50rpm)

    Working Temperature

    Storage Temperature

    -25°C~+45°C

    -40°C~+60°C

    Working humidity95%RH(38°C)
    IP protection gradeIP54
    Operating speed0~5 rpm
    Contact material

    Copper graphite

    Alloy brush (silver coated)

    Housing materialQ235+spray painting / Stainless steel 316
    Connection mode

    Screw link terminal

    Junction Box

    Maintenance

    Schedule maintenance

    Free maintenance

    RotatingRing Road Rotating and brush keep stable
    InstallationRotor side drove by dial block, and stator side fixed by the screws
    Dimensions604mm*604mm*1410mm

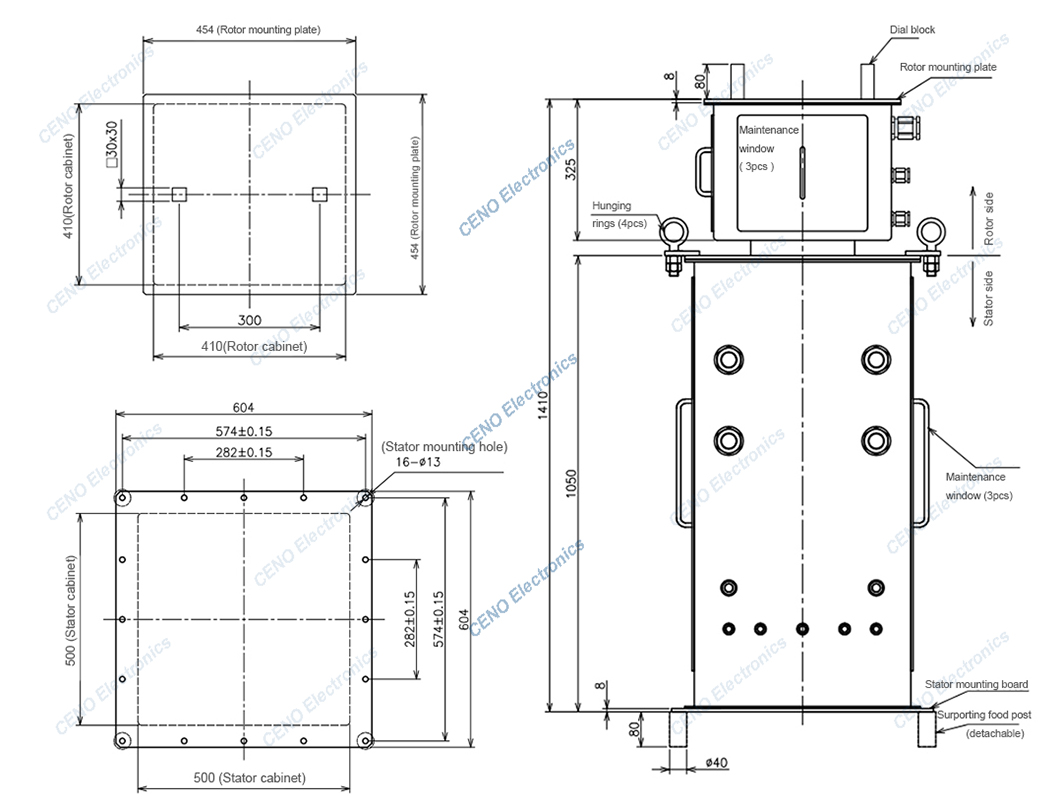

    Outline Drawing



    More information about ceno marine carbon brush slip rings


    CENO Electronics has been designing and manufacturing slip rings for various industries for about 20 years. Our Carbon Brush Slip Ring is specially designed for marine and offshore applications, making sure your equipment runs smoothly and efficiently.
    Our Carbon Brush Slip Ring has 7 circuits for 200A (400V), 1 circuit for PE, 6 circuits for 63A (400V), and 40 circuits for 5A signal. This product stands out with its large current capacity, which is perfect for marine and offshore applications. The high-quality materials used in construction ensure that our slip rings can withstand harsh and corrosive environments.
    Our Carbon Brush Slip Rings also feature low electrical noise and minimal contact resistance, which can maintain the integrity of your signal transmission and power delivery. With CENO Electronics, you can trust that our slip rings are reliable and efficient, ensuring that your machinery operates safely and efficiently.
    In conclusion, CENO Electronics has developed a Carbon Brush Slip Ring that is specifically designed to meet the needs of marine and offshore applications. With its large current capacity, low electrical noise, and high-quality construction materials, it is an excellent choice for any industrial application. Trust CENO Electronics for all your slip ring needs.

    Application pictures



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
