    Industrial Signal Profinet Ethernet Slip Ring 250 Rpm Combine Electrical Power Collector

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-05P2-05S
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    Industrial Signal Profinet Ethernet Slip Ring 250 Rpm Combine Electrical Power Collector


    Industrial Ethernet Signal Profinet Slip Ring combine Electrical Power Collector

    ECN000-05P2-05S is CENO new customized profinet slip ring which is designed for medical equipment. Industrial Ethernet also called Profinet is an Ethernet technology used in the field of industrial control. It is technically compatible with commercial Ethernet, but the actual products and applications are completely different. CENO Profinet slip ring parameters can be designed as customer applications, 1000M Ethernet inner hole 0-1 20mm optional, 100M Ethernet inner hole 0-200mm optional. For more information about how CENO profinet slip ring can fit your specific applications please contact us.

    Features

    • High communication rate, even to support 1000Mbps
    • Can be integrated and transfer power & other complex signals
    • Various connector type available


    Applications

    • Automatic machine
    • Mechanical equipment
    • Power engineer machine
    • Turntable test equipment
    • Medical equipment


    Optional

    • Circuit, Voltage, Current
    • Signal types
    • Contact / Housing Materials
    • Protection grade
    • Working speed


    Specification

    Current & Circuits

    5 circuits * 10A; 1circuit * Profinet

    Rating Voltage0~480 VAC/VDC
    Dielectric strength

    ≥1000VAC@50Hz (P)
    ≥250VAC@50Hz (S)

    Isolation resistance

    ≥500MΩ@500VDC (Electric)
    ≥200MΩ@250VDC(Power)

    Contact resistance≤30mΩ (50rpm)
    Working Temperature-20°C~+80°C
    Working humidity60%RH
    IP protection gradeIP51
    Operating speed0~250 rpm
    Contact materialPrecious Metal; Gold to Gold
    Housing materialAluminium alloy
    Lead wire size

    4core shielded wire;
    4core twisted shielded wire

    Lead wire length

    Rotor: 3000±100mm
    Stator: 1000±200mm

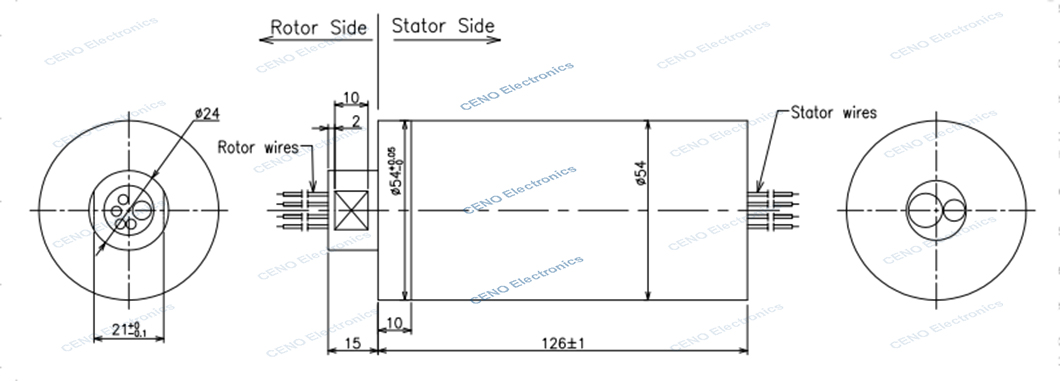

    Outline drawing




    More similar information about Industrial Ethernet Signal Profinet Slip Ring combine Electrical Power Collector


    CENO has been designing and manufacturing slip rings for around 20 years. Our latest product, the Radar Antenna Slip Ring, is the perfect solution for radar antenna applications. This slip ring is specifically designed to combine different electrical and signal components including power, Ethernet signal, and RS422. Its flange design makes it easy to install and it operates flawlessly under all kinds of weather conditions.
    The Radar Antenna Slip Ring is an essential component for any radar antenna application. Its compact design ensures that it fits perfectly in tight spaces, and it can transfer data and power between stationary and rotating parts of the antenna with minimal resistance. The slip ring also provides reliable and accurate transfer of Ethernet signals, ensuring smooth communication between the antenna and the radar system.
    One of the key features of this slip ring is its low-temperature capabilities. The Radar Antenna Slip Ring can operate reliably in temperatures as low as -40°C, making it ideal for use in harsh environments. Additionally, its innovative design makes it highly resistant to wear and tear, and it requires very minimal maintenance.
    Installation of the Radar Antenna Slip Ring is quick and easy, thanks to its flange design. Its high-quality materials ensure that it will last a long time under all kinds of weather conditions. With our product, you can be assured that you are getting the best quality for your money.
    In conclusion, the Radar Antenna Slip Ring is a must-have for any radar antenna application. It is specifically designed to transfer different electrical and signal components while operating reliably under low-temperature conditions. Its flange design makes it easy to install and minimizes any possible downtime. With its innovative design, reliability, and low maintenance requirements, it is the perfect solution for your radar antenna needs.
