    Solid Multi Channels 250A High Amp Slip Ring For Industry

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-67P
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 weeks
    • Product Details
    • Company Profile

    Solid Multi Channels 250A High Amp Slip Ring For Industry

    electric power slip rings electrical connector


    250A High Current Solid Multi Channels Electrical Power Slip Rings for Industry


    ECN000-67P is CENO new product and customized slip ring which specialize in solid design with multi channels and outlet wires in three different directions. When it comes to electrical transmission, different applications require different voltages as 400V, 250V & 150V. CENO custom products are designed to meet the specific needs of different industry sectors, ensuring reliable and optimum performance in any working environment. At CENO, we understand that each customer has unique needs and requirements. For more information about how CENO slip ring can fit your specific environment please contact us.


    Features

    • Multi channels and wires in three directions & 3 kinds of Voltage
    • Channels can be to 500 circuits
    • Can be integrated various data
    • Install easily & transmit stably

    Applications

    • Automatic machine
    • Medical machine
    • Turntable plat
    • Lithium battery equipment
    • Filling machinery

    Optional

    • Circuits, Voltage, Current
    • Protection Grade
    • Contact / Housing Materials
    • Working temperature
    • Working speed

    Product details

    ECN000-67P

    Specification
    Current & Circuits

    67 circuits electric power and signal

    Rating Voltage0~400 VAC/VDC
    Dielectric strength≥1200VAC@50Hz
    Isolation resistance≥500MΩ@500VDC
    Contact resistance≤30mΩ (50rpm)
    Working Temperature-20°C~+80°C
    Working humidity90%RH
    IP protection gradeIP51
    Operating speed0~50 rpm
    Contact materialGold to Gold
    Housing materialAluminum Alloy
    Lead wire length

    Rotor: 850mm

    Stator: 1000mm

    Installation Way

    Flange installation

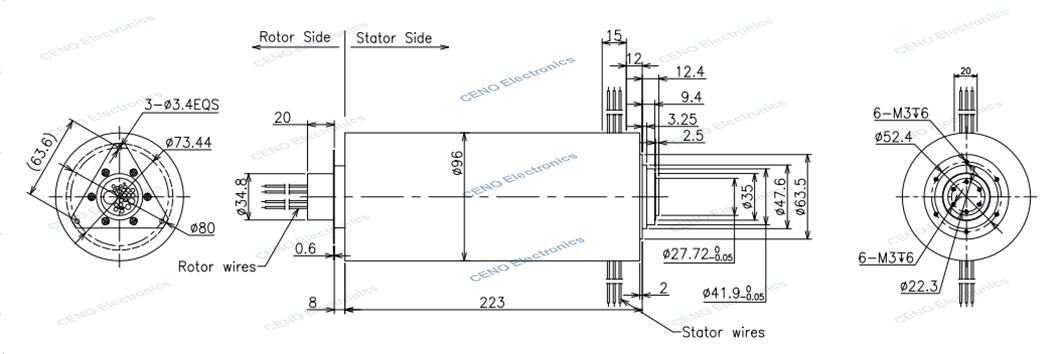

    Outline drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
