    Electrical Through Hole Power Slip Rings 0 - 300rpm For Industrial System

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN038-06P3-01P2-12S
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    Electrical Through Hole Power Slip Rings 0 - 300rpm For Industrial System

    Product Description:

    ECN038-06P3-01P2-12S is CENO new through hole power slip rings which is designed for the industry system. CENO through-hole slip rings are a popular choice for many customers. With a through hole of 38.1mm, this type slip ring offers excellent flexibility and can be customized to meet different applications. We offer a range of sizes from 3mm to 1000mm, depending on your requirements. At CENO, we are committed to offering high-quality products and service, more information please contact us.

    Features

    • Through hole design & transmit Electric signal stably
    • Speed 300rpm & be optional
    • Can be integrated various data
    • Install easily & transmit stably


    Applications

    • Automatic industry system
    • Wind turbine
    • Traffic system
    • Process control system
    • Medical equipment


    Optional

    • Circuits, Voltage, Current
    • Signal or data
    • Contact / Housing Materials
    • Protection grade
    • Working speed

    Technical Parameters:

    ECN038-06P3-01P2-12S

    Specification
    Current & Circuits

    6circuits*5A; 12circuits*signal,1circuits*PE

    Rating Voltage0~380VDC
    Dielectric strength

    ≥1500VAC@50Hz (15A)
    ≥300VAC@50Hz (Other)

    Isolation resistance

    ≥500MΩ@500VDC (Power)
    ≥100MΩ@300VDC (Signal)

    Electrical Noise30mΩ (50rpm)
    Contact materialPrecious Metal
    Housing materialAluminum Alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP51
    Operating speed0~300rpm
    Inner diameterØ38.1mm
    Lead wire sizeAWG14#17# 22#Wire Teflon® UL
    Lead wire lengthRotor : 2000mm; Stator : 2000mm
    Installation wayFix stator with anti-rotation Shaft drive rotor running

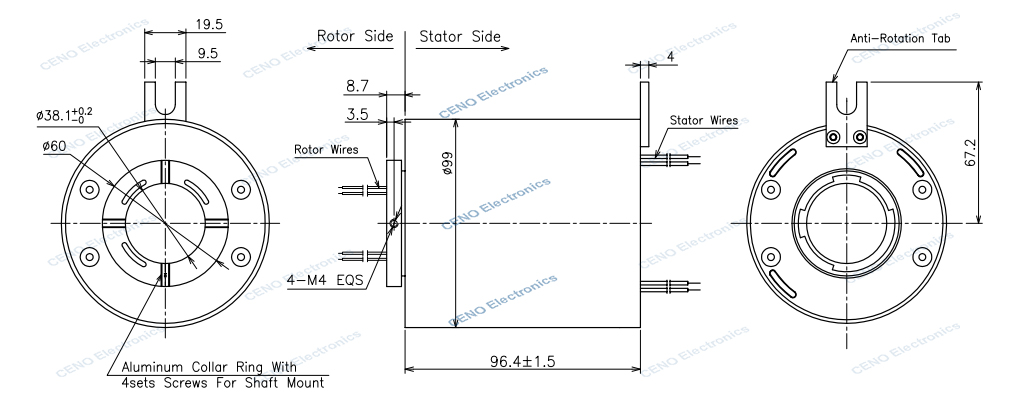

    Outline drawing:





    Applications:

    ECN025-03P3-02P1-10S is CENO new product Integrated Signal Slip Ring which is designed for the construction machinery specially adjusted for harsh working conditions, and the temperature resistance performance can meet the demands of working in the Siberian cold area and the Brazilian tropic rainforest area. CENO Signal slip rings have ultra long distance signal transmission and long service life with stable transmission, no packet loss and comply with EMC requirement. It is available in a wide range of prices, and the packaging details and delivery time can be discussed based on the customer’s request. This product is in stock and has a supply ability of 1000pcs per month. Payment terms include T/T, Paypal, and Western Union. CENOECN025-03P3-02P1-10S Industrial Slip Ring is an ideal solution for your industrial needs.

    Support and Services:

    We provide technical support and service for our Industrial Slip Rings. Our team of experts is available to assist you with any technical questions or solutions you may have. We also offer a variety of services including installation and maintenance, troubleshooting, and custom solutions.
    If you need assistance, please contact us through our website or call us directly. We will do our best to help you find the right solution for your application.
    We strive to provide the best possible customer service and product support. If you have any questions or concerns, please don’t hesitate to contact us.

    Packing and Shipping:

    Industrial Slip Ring Packaging and Shipping:

    • The slip rings meet the requirements of the relevant international codes and standards.
    • Slip rings are packed in wooden cases or metal boxes.
    • Large packages are shipped by sea or air.
    • Small packages are shipped by express.
    • Each package is labeled with product name, model, size, quantity, origin, etc.
    • The packages are inspected to ensure that the products are delivered in good condition.

    FAQ:

    Q: What is the brand name of your Industrial Slip Ring?
    A: Our Industrial Slip Ring is CENO brand.
    Q: What is the model number of your Industrial Slip Ring?
    A: The model number of our Industrial Slip Ring is ECN000-04P-08S.
    Q: Where is your Industrial Slip Ring manufactured?
    A: Our Industrial Slip Ring is manufactured in China.
    Q: What is the minimum order quantity of your Industrial Slip Ring?
    A: The minimum order quantity of our Industrial Slip Ring is 1pcs.
    Q: What is the delivery time of your Industrial Slip Ring?
    A: The delivery time of our Industrial Slip Ring is 2 weeks.
