Brand Name : | CENO |
Model Number : | ECN000-04P2-IP65-B |
Certification : | CE,RoHS,ISO9001,UL |
Price : | Negotiable |
Payment Terms : | T/T,Paypal, Western Union |
Supply Ability : | 1000pcs per month |
Delivery Time : | 1 week |
High Voltage 500V Water proof Electrical Slip Ring with IP65 for Marine
ECN000-04P2-IP65-B is CENO new function water proof slip ring with IP65 for Rolling Machine. Slip rings of the water proof series have the characteristics of precious metal contact,long service life and protect grade can be to IP68 for customer request. furthermore, they are pressure-proof and vibration resistant also. It’s popular apply to kinds of outdoor machinery, as the wind power generator equipment, exhibit display machinery or Semiconductor handing systems well. More information please contact us.
Features
Applications
Optional
Specification
ECN000-04P2-IP65-B | Specification |
Current & Circuits | 4circuits*10A |
Rating Voltage | 0-500VAC/VDC |
Dielectric strength | ≥1500VAC@50Hz |
Isolation resistance | ≥300MΩ@100VDC |
Contact resistance | 30mΩ (50rpm) |
Contact material | Precious Metal |
Housing material | Aluminum Alloy+Stainless steel |
Working temperature | -20°C~+70°C |
Working humidity | 60 %RH |
IP protection grade | IP65 |
Operating speed | 0~100rpm |
Lead wire size | AWG17# Wire Teflon® UL |
Lead wire length | Rotor : 500mm; Stator : 500mm |
Rotation Way | Flange installation |

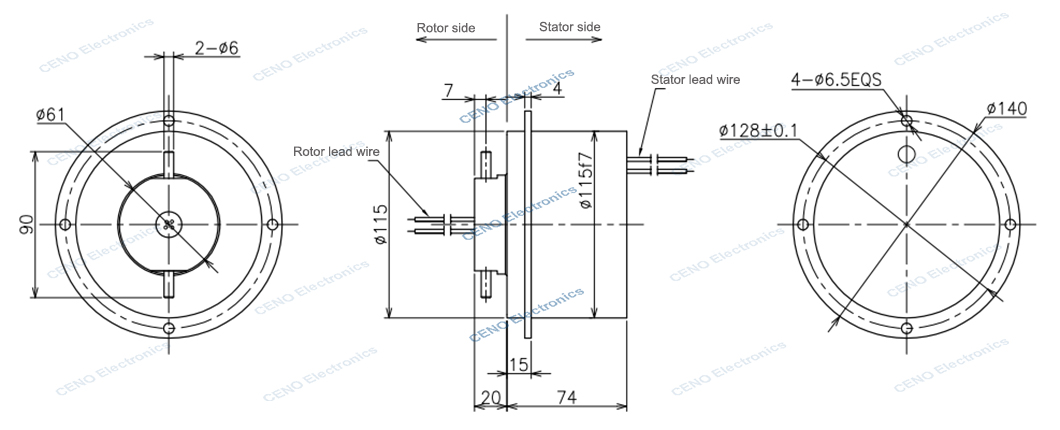

Outline Drawing
