    Hollow Shaft CAN Bus Signal Slip Ring With Water Proof IP65 For Automobiles

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN015-15P2-02S-IP65
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Hollow Shaft CAN Bus Signal Slip Ring With Water Proof IP65 For Automobiles

    Hollow Shaft CAN Bus Signal Slip Ring with Water proof IP65 for Automobiles


    ECN015-15P2-02S-IP65 is CENO new product CAN BUS Water proof Slip Ring with IP65 which is designed for automobiles. CAN Bus is a serial communication protocol bus used for real-time applications and is one of the most widely used Profi-bus in the world, CENO have produced many kinds of signal slip rings, it can be integrate USB, Ethernet, Thermocouple, encoder, FORJs or RF as customer different requirements. For more information please contact us.


    Features

    • High protection grade IP65
    • Integrated CAN BUS Signal and data / signal type can be option
    • Complete serial data transmit and high transmission rate

    Applications

    • Automatic machine
    • Turntable testing machine
    • Automobile component
    • Manufacturing
    • Electrical Mechanical

    Optional

    • Circuit, Voltage, Current
    • Signals and data
    • Contact / Housing Materials
    • Lead wire size & length
    • Working speed & IP Grade

    Specification

    ECN015-15P2-02S-IP65

    Specification
    Current & Circuits15circuits*10A; 2 circuits * CAN Signal
    Rating Voltage0-220VAC/VDC
    Dielectric strength≥1000VAC@50Hz; ≥500VAC@50Hz;
    Isolation resistance≥500MΩ@500VDC; ≥300MΩ@100VDC
    Contact resistance70mΩ (50rpm)
    Contact materialPrecious Metal
    Housing materialAluminum Alloy
    Working temperature-20°C~+80°C
    Working humidity60 %RH
    IP protection gradeIP65
    Operating speed0~300rpm
    Lead wire lengthRotor : 1100mm; Stator : 1100mm
    Inner diameterØ15mm
    Rotation WayRotor side fixed on customer main shaft with screws

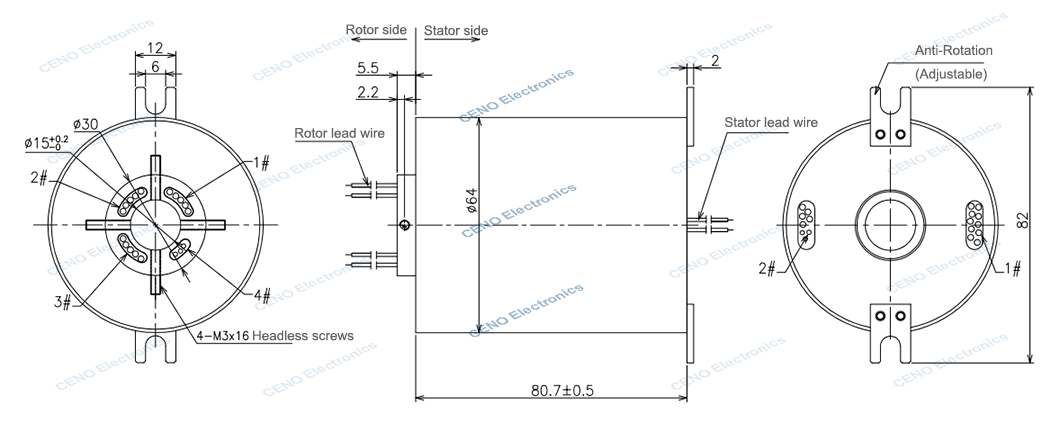

    Outline Drawing


    Why Choose Us:


    The Experts in Ethernet Signal Slip Rings and Low Temperature Slip Rings


    For almost 20 years, CENO Electronics has been the go-to company for the development and manufacturing of slip rings. With over 5000 customized products available, we take pride in offering a wide range of slip ring solutions, including electric slip rings, signal slip rings, functional slip rings, pneumatic & hydraulic rotary joints, fiber optic rotary joints, and RF rotary joints.


    One specialty that sets us apart is our expertise in Ethernet signal slip rings and low temperature slip rings. Our Ethernet signal slip rings can transfer high speed data signals without interference, while our low temperature slip rings are designed to operate in temperatures as low as -60˚C. These important features make our slip rings reliable solutions for applications in military, aerospace, and other industries.


    At CENO Electronics, we value our customers and strive to provide them with the best products and services possible. Our commitment to quality, innovation, and customization has earned us the trust and loyalty of our clients. Therefore, if you are looking for a reliable slip ring supplier with extensive experience in Ethernet signal slip rings and low temperature slip rings, look no further than CENO Electronics.
