    Ethernet Signal Slip Ring with Profi-net RS232 & Through Bore For Power system

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN060-06P-02S-01EM-F
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    Ethernet Signal Slip Ring with Profi-net RS232 & Through Bore For Power system

    Ethernet Signal Slip Ring with Profi-net RS232 & Through Bore For Power system


    ECN060-06P-02S-01EM-F is CENO Profi-net Slip ring with inner bore size 60mm for CCTV IP-surveillance. CENO’s Signal slip ring solutions have been developed to provide reliable products to allow transfer of the Ethernet protocol through a rotating interface. The customized designs with innovative meet the challenge of matching impedance, controlling crosstalk and managing losses. CENO offered a wide range of product solutions which with combinations of signal & power in multiple mechanical configurations. More information, please contact us.


    Features

    Through hole design & inner bore size 3 ~ 1000mm optional

    Stable transmitting, no string code, low loss comply with EMC

    Install easy & Free maintenance


    Applications

    Motion controller

    Video over ethernet

    CCTV IP - surveillance

    Turn table testing equipment

    Electrical power system


    Optional

    Circuit, Voltage, Current

    Signal type & channels

    Contact / Housing Materials

    IP Grade

    Working speed



    Specification

    ECN060-06P-02S-01EM-F

    Specification
    Current & Circuits2 Circuits *20A; 2 Circuits* 30A; 2 Circuits* 5A; ; 1 Group* RS232; 1 Group* Profinet
    Rating Voltage0~480VAC/VDC
    Dielectric strength≥300VAC@50Hz
    Isolation resistance100MΩ@300VDC
    Temperature-20°C~+60°C
    Working humidity60%RH
    IP protection gradeIP50
    Operating speed0~300rpm
    Inner DiameterØ60mm
    External DiameterØ135mm
    Lead wire size

    AWG12# 22# Wire Teflon® UL;

    Two-core twisted shield wires CAT5e

    Lead wire lengthRotor: 2000mm; Stator: 2000mm
    InstallationStator side fixed on main shaft with screws
    Contact MaterialPrecious Metal / Gold to gold
    Housing MaterialAluminum Alloy

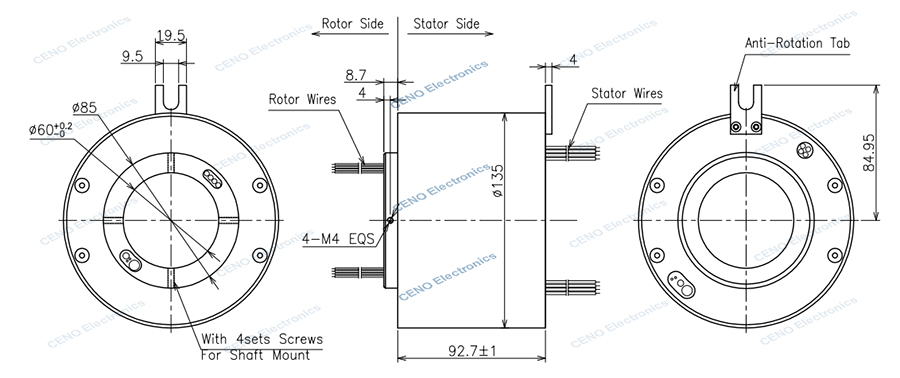

    Outline drawing




    More information about this low temperature eternet signal slip ring
    CENO has been designing and manufacturing slip rings for around 20 years. Our latest product, the Radar Antenna Slip Ring, is the perfect solution for radar antenna applications. This slip ring is specifically designed to combine different electrical and signal components including power, Ethernet signal, and RS422. Its flange design makes it easy to install and it operates flawlessly under all kinds of weather conditions.
    The Radar Antenna Slip Ring is an essential component for any radar antenna application. Its compact design ensures that it fits perfectly in tight spaces, and it can transfer data and power between stationary and rotating parts of the antenna with minimal resistance. The slip ring also provides reliable and accurate transfer of Ethernet signals, ensuring smooth communication between the antenna and the radar system.
    One of the key features of this slip ring is its low-temperature capabilities. The Radar Antenna Slip Ring can operate reliably in temperatures as low as -40°C, making it ideal for use in harsh environments. Additionally, its innovative design makes it highly resistant to wear and tear, and it requires very minimal maintenance.
    Installation of the Radar Antenna Slip Ring is quick and easy, thanks to its flange design. Its high-quality materials ensure that it will last a long time under all kinds of weather conditions. With our product, you can be assured that you are getting the best quality for your money.
    In conclusion, the Radar Antenna Slip Ring is a must-have for any radar antenna application. It is specifically designed to transfer different electrical and signal components while operating reliably under low-temperature conditions. Its flange design makes it easy to install and minimizes any possible downtime. With its innovative design, reliability, and low maintenance requirements, it is the perfect solution for your radar antenna needs.


    Our Service
    1. Reply inquiry in 24 hours.
    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
    3. Answer your question detailed.
    4. Solved the problem with you during using our products.
    5. Samples will be offered to you for our future cooperation.

    FAQ

    1. What do we do?
    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

    2. How long have we been in the business?
    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

    3. What is a slip ring?
    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

    4. How do I choose a slip ring?
    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

    5. Do you offer custom slip rings?
    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

    Why with CENO
    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.

    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
