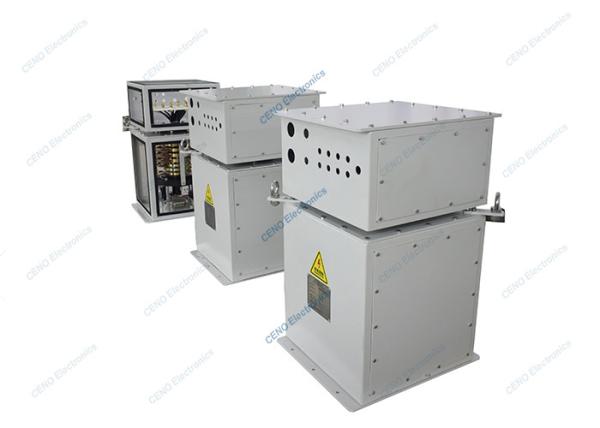

    High Current Copper Carbon Brush Slip Ring With 300A & High Voltage 690V For Marine

    Ask Lasest Price
    Brand Name : CENO
    Model Number : BHCN-C-04300-0350-02P2-22S
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T,Paypal,Western Union
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    High Current Copper Carbon Brush Slip Ring With 300A & High Voltage 690V For Marine

    High Current Copper Carbon Brush Slip Ring with 300A & High Voltage 690V For Marine


    BHCN-C-04300-0350-02P2-22S is CENO’s new Carbon Brush Slip Ring with high current 300A and high voltage 690VAC/VDC for marine machinery. Most of high-current conductive slip rings are customized slip rings, and designed for 360°infinite rotation connection of high-current and high-power power supplies or signals. Generally, the current is between 50A and 3000A, They are widely used in rotating worktables, cranes, electric winches, Industrial equipment fields. For more information please contact us.


    Features

    Copper carbon brush design and integrate power signal &Encoder

    High current 300A up to 3000A

    Binding post connect, easy to connect wires & high safety


    Applications

    Marine machinery

    Turntable testing machine

    Large radars

    Welding robots

    Large Cranes


    Optional

    Circuit, Voltage, Current

    Brush material

    Shape and dimension

    Working temperature

    Working speed


    Specification

    BHCN-C-04300-0350-02P2-22S

    Specification
    Current & Circuits

    3 circuits * 300A (690V); 1 * PE; 3 * 50A (380V) (Stator);

    2 circuits * 10A; 22 circuits * Signal (Rotor)

    Rating Voltage

    0-690VAC/VDC (Stator)

    0-220VAC/VDC (Rotor)

    Dielectric strength

    ≥1500VAC@60Hz (Stator)

    ≥1000VAC@50Hz (Rotor power)

    ≥1500VAC@60Hz (Rotor signal)

    Isolation resistance

    ≥500MΩ@500VDC (Stator)

    ≥500MΩ@300VDC (Power)

    ≥100MΩ@100VDC (Power)

    Contact resistance

    ≤10mΩ (50rpm) (Stator)

    ≤30mΩ (50rpm) (Rotor)

    Contact material

    Copper Carbon

    Precious metal

    Housing materialQ235A + RAL 7035
    Working temperature-20°C~+60°C
    Working humidity95 %RH
    IP protection gradeIP54
    Operating speed0~10rpm
    Outer Dimension500*580*900mm
    Other componentsTransformer; Heater; Thermal control
    Rotation methodCircuits rotating and brush keep state


    Outline Drawing


    More information about ceno marine carbon brush slip rings


    CENO Electronics has been designing and manufacturing slip rings for various industries for about 20 years. Our Carbon Brush Slip Ring is specially designed for marine and offshore applications, making sure your equipment runs smoothly and efficiently.
    Our Carbon Brush Slip Ring has 7 circuits for 200A (400V), 1 circuit for PE, 6 circuits for 63A (400V), and 40 circuits for 5A signal. This product stands out with its large current capacity, which is perfect for marine and offshore applications. The high-quality materials used in construction ensure that our slip rings can withstand harsh and corrosive environments.
    Our Carbon Brush Slip Rings also feature low electrical noise and minimal contact resistance, which can maintain the integrity of your signal transmission and power delivery. With CENO Electronics, you can trust that our slip rings are reliable and efficient, ensuring that your machinery operates safely and efficiently.
    In conclusion, CENO Electronics has developed a Carbon Brush Slip Ring that is specifically designed to meet the needs of marine and offshore applications. With its large current capacity, low electrical noise, and high-quality construction materials, it is an excellent choice for any industrial application. Trust CENO Electronics for all your slip ring needs.

    Application pictures



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
