    Integrate Miniature Slip Ring Capsule With Power INS And RF Signal For Drone

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ACN22-02P2-12S-02HD
    Certification : ISO9001,CE,RoHS
    Price : Negotiable
    Payment Terms : T/T,Paypal,, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Integrate Miniature Slip Ring Capsule With Power INS And RF Signal For Drone

    Integrate Miniature slip ring capsule with Power INS and RF signal For Drone


    ACN22-02P2-12S-02HD is CENO’s new customized High Definition Video Slip Ring which combine electric power with 2 groups of HDMI RF signal, 1 group of INS signal. Full name of INS is inertial integrated navigation system, the basic working principle of the INS is based on Newton’s laws of mechanics. We can obtain the acceleration in the navigation coordinate system, information as speed, yaw angle & Position.Often apply to Driver less vehicles, aircraft navigation system and kinds of test equipment turntable. More information please contact CENO expert team.


    Specification

    ACN22-02P2-12S-02HD

    Specification
    Current & Circuits2 circuits * 10A; 2 circuits * 1A; 2 Group* RF Signal; 1 group * Signal; 1 group * Ins signal
    Rating Voltage24VAC/VDC
    Dielectric strength≥100VAC@50Hz
    Isolation resistance

    ≥50MΩ@100VDC

    ≥10MΩ@100VDC

    Contact materialGold to Gold
    Housing materialAluminum alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP40
    Operating speed0~300rpm
    External diameterØ22mm
    Lead wireRotor:650±10mm; Stator: 800±10mm;
    RF
    Frequency rangeDC-2150MHz
    Isolation rate>20dB
    VSWR<4
    Insert loss<5.5dB@500/500mm lead wire length
    Lead wire typeRG316
    Lead wire lengthRotor: 650±10mm; Stator: 800±10mm

    Features

    • Compact structure with capsule design & more size optional
    • Integrate HDMI, RF with INS signal for special application
    • Install easy & Free maintenance

    Applications

    • Motion simulation test equipment
    • Turntable testing
    • Driver less vehicles
    • Aircraft navigation system
    • Satellite navigation

    Optional

    • Signals, Data or Electric power
    • Circuits, Current & Voltage
    • Contact / Housing Materials
    • Protection grade
    • Working speed & temperature

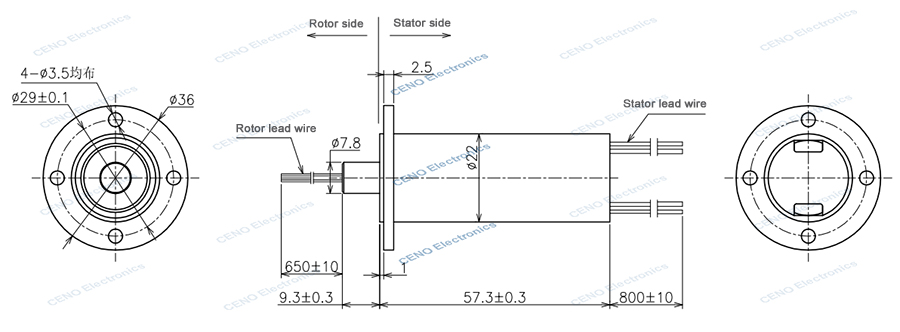

    Outline Drawing


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
