    Modbus Signal Slip Ring With 10A Electric Power & Flange For Industrial Automatic

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-11P2-05S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Modbus Signal Slip Ring With 10A Electric Power & Flange For Industrial Automatic

    Modbus Signal Slip Ring with 10A Electric Power & Flange for Industrial Automatic

    ECN000-11P2-05S is CENO new integrated slip ring that combine 11 circuits electric power with 5 circuits modbus for industry communication system. Which is composed of a programmable controller with an intelligent terminal and a computer connected through public lines or local dedicated lines. CENO have designed and produced thousands of integrated slip rings in past twenty years, including DP, HDMI, USB2.0, 3.0 or 100M / 1000M Ethernet signals. More information please contact us.

    Features

    • Combine electric with Modbus
    • Industry application with low loss
    • Can be integrated various data pneumatic or RF as request
    • Install easy & Free maintenance


    Applications

    • Industry communication system
    • Intelligent housing system
    • Energy monitoring system
    • Smart transportation
    • Environmental monitoring


    Optional

    • Circuit, Voltage, Current
    • Signal type
    • Contact / Housing Materials
    • Protection grade
    • Working speed & temperature


    Specification

    ECN000-11P2-05S

    Specification
    Current & Circuits

    11 circuits * 10A (160VAC); 5 circuits * Modbus

    Rating Voltage0-160VAC/VDC
    Dielectric strength

    ≥500VAC@50Hz; ≥300VAC@50Hz

    Isolation resistance

    ≥500MΩ@500VDC; ≥100MΩ@300VDC

    Contact resistance30mΩ (50rpm)
    Contact materialPrecious Metal
    Housing materialAluminum Alloy
    Working temperature-20°C~+60°C
    Working humidity60%RH
    IP protection gradeIP51
    Operating speed0~60rpm
    Lead wire lengthRotor:2000mm; Stator:5000mm
    Rotation WayFlange installation

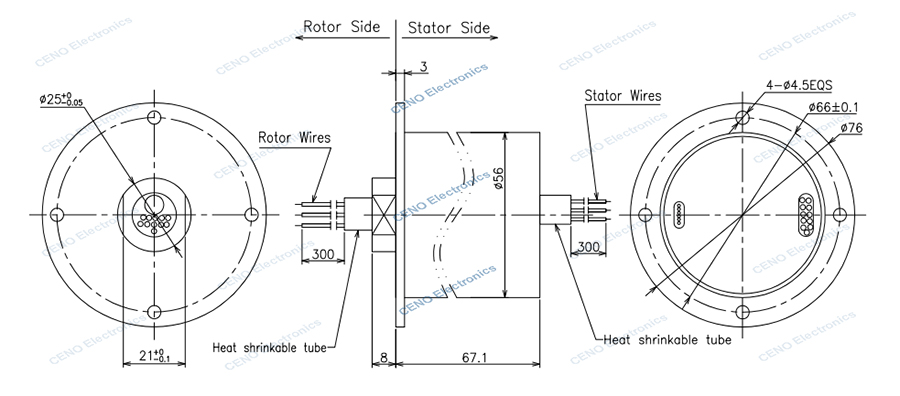

    Outline Drawing

    Similar application for the Through Hole Power Coductive Slip Rings Collector with Electrical Rotary Joint

    This article is about CENO slip ring is used in X-ray computer tomography in medicine.

    CENO have more than 5000 designs for different machinery and application in recently 20years. Tack CENO new product large size for example, which is designed for the CT Scan.

    A computed tomography scan (usually abbreviated to CT scan; formerly called computed axial tomography scan or CAT scan) is a medical imaging technique used to obtain detailed internal images of the body. The personnel that perform CT scans are called radiographers or radiology technologists.

    CT scanners use a rotating X-ray tube and a row of detectors placed in a gantry to measure X-ray attenuations by different tissues inside the body. The multiple X-ray measurements taken from different angles are then processed on a computer using tomographic reconstruction algorithms to produce tomographic (cross-sectional) images (virtual "slices") of a body. CT scan can be used in patients with metallic implants or pacemakers.

    Since its development in the 1970s, CT scanning has proven to be a versatile imaging technique. While CT is most prominently used in medical diagnosis, it can also be used to form images of non-living objects.

    CENO-CT-slip-ring-75

    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof
    Single channel fiber optic rotary joint 6.8mm OD stainless steel

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
