    31 Circuits 2A 5A Electric Through Hole Slip Ring For Industrial Automatic

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN012-31P1
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    31 Circuits 2A 5A Electric Through Hole Slip Ring For Industrial Automatic

    31 Circuits 2A 5A Electric Through Hole Slip Ring For Industrial Automatic


    ECN012-31P1 is CENO new customized through bore slip ring for Industry system, and have 27 circuits 2A current and 4 circuits 5A Electrical power. Through bore conductive slip ring is the most cost-effective and best-selling series of industrial slip rings currently. CENO through bore slip ring often combine power, data, signal, FORJs, RF, Pneumatic or Hydraulic as customer special request and without interference in one rotary system. Due to it’s excellent performance and high cost-effective, more and more applications in industrial field. More information please contact CENO expert.


    Features

    • Optional for IP51,...IP67, IP68
    • Can integrate various Electric power, data, Signals etc.
    • High quality & Cost-effective
    • Install easy & Free maintenance

    Applications

    • Highway toll system
    • Road monitoring system
    • Power collection system
    • Wind power equipment
    • Amusement equipment

    Optional

    • Circuits, Voltage, Current
    • Contact / Housing Materials
    • Lead wire length / Size
    • Protection grade
    • Working speed

    Specification

    ECN012-31P1

    Specification
    Current & Circuits27 circuts * 2A; 4 circuits * 5A
    Rating Voltage0-380VAC/VDC
    Dielectric strength≥1000VAC@50Hz
    Isolation resistance≥500MΩ@500VDC
    Contact resistance≤30mΩ (50rpm)
    Contact materialPrecious metal
    Housing materialAluminum alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP51
    Operating speed0~300rpm
    Inner diameterØ12.7mm
    Lead wireRotor:300mm; Stator:300mm
    InstallationRotor side fixed on main shaft with screws

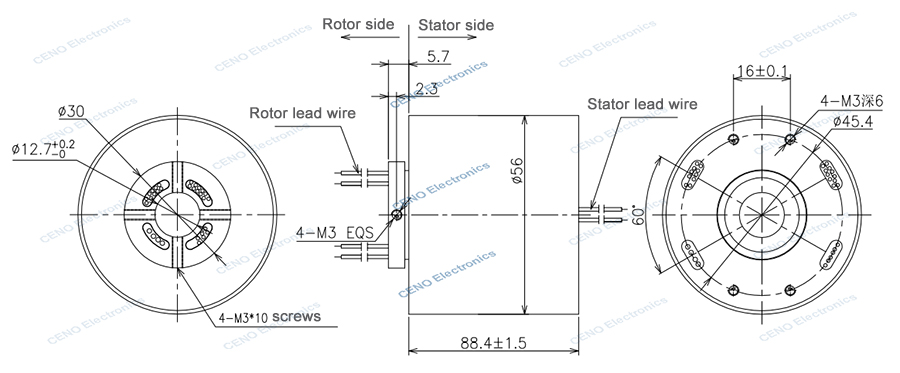

    Outline Drawing




    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
