    2 Circuits 1000M Ethernet Signal Slip Ring With 8 Circuits 10A For Industry

    2 circuits 1000M Ethernet Signal Slip Ring with 8 circuits 10A For Industry


    ECN016-08P2-02EG is CENO’s new through hole slip ring combine 8 circuits 10A electric power with 2 circuits Ethernet signal for industry. It’s hollow shaft design and inner bore size 16mm, continuous rotating and transferring power and Ethernet signal stably within speed 300rpm & temperature -20℃~+60℃. At CENO most of parameters are optional as customers’ special applications. Take inner diameter for example size 3mm-9000mm is optional. For more information please contact CENO expert team.


    Features

    Combine Ethernet & Electric

    Stable transmitting, no string code, low loss comply with EMC

    Can be integrated various data

    Install easy & Free maintenance


    Applications

    Automatic machine

    Turntable testing machine

    Intelligent housing system

    Filling machinery

    Medical equipment


    Optional

    Circuit, Voltage, Current

    Signals and data

    Contact / Housing Materials

    Protection grade

    Working speed



    Specification


    ECN016-08P2-02EG

    Specification
    Current & Circuits8 circuits * 10A; 2 circuits * 1000M Ethernet
    Rating Voltage0-220VAC/VDC
    Dielectric strength≥1000VAC@50Hz; ≥300VAC@50Hz
    Isolation resistance≥500MΩ@500VDC; ≥300MΩ@500VDC
    Contact resistance≤30mΩ (50rpm)
    Contact materialPrecious metal
    Housing materialAluminum alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP51
    Operating speed0~300rpm
    Inner diameterØ16mm
    Lead wire size

    AWG17 # Tin coated Teflon® UL

    CAT5E

    Lead wire lengthRotor:300mm; Stator:300mm
    InstallationRotor side fixed on main shaft with screws

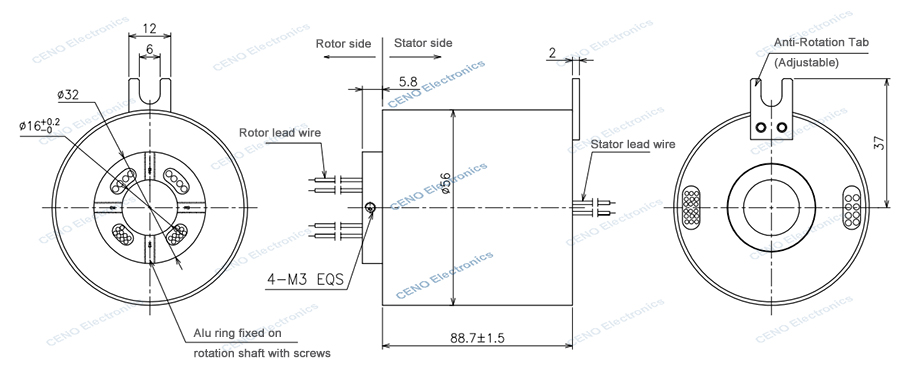

    Outline Drawing


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
