    1000M Gigabit Ethernet Integrated Slip Ring Precious Metal Contact 0 - 300rpm

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN038-10P1-01EG
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

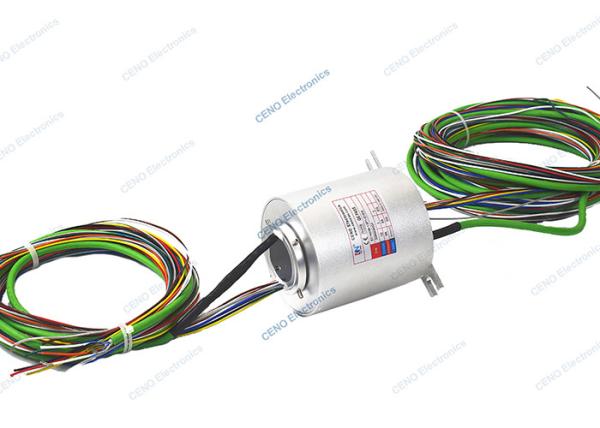

    1000M Gigabit Ethernet Integrated Slip Ring Precious Metal Contact 0 - 300rpm



    1000M Gigabit Ethernet Integrated Slip Ring For Industry Application


    ECN038-10P1-01EG is an Gigabit Ethernet slip ring with hollow shaft and 38.1mm inner diameter from CENO Electronics. There are 10 circuits for 5A, 1 circuits for 5A and 1 channel for 1000M Ethernet, the current, circuits & Signals are optional and the multi-point brush contact material ensure long life. The integrated structure with through hole and anti-rotation tabs designs for easy installation. The IP grade can be customized as different application or operating environment. Often apply to the Communication system, automation equipment, Filling machinery, and high low temperature environment.


    Features

    • Light weight & Compact size
    • Optional specification
    • Install easily
    • Transmit stably
    • Free maintenance

    Applications

    • Automatic machine
    • Communication system
    • Measuring instrument
    • Filling Machinery

    Optional

    • Circuit number & Current
    • Working speed & IP Grade
    • Position of wire outlet
    • Signal type

    Specification

    ECN038-10P1-01EG

    Specification
    Current & Circuits10circuits*5A, 1 circuits*5A, 1channel*1000M Ethernet
    Rating Voltage0~380VAC/VDC
    Dielectric strength≥1000VAC@50Hz; ≥300VAC@50Hz
    Isolation resistance≥500MΩ@500VDC; ≥100MΩ@300VDC
    Electrical noise≤30mΩ (50rpm)
    Operating speed0~300rpm
    Contact materialPrecious metal
    Housing materialAluminum alloy
    Working temperature-20°C~+60°C
    Working humidity60%
    IP protection gradeIP51
    Through hole sizeØ38.1mm
    Lead wire size

    AWG17# Tin coated Teflon®UL

    Cat5e Unshielded twisted wire

    Lead wire length

    Rotor : 2000mm

    Stator : 5500mm

    InstallationFix up stator side with anti-rotation tab shaft drives rotor running

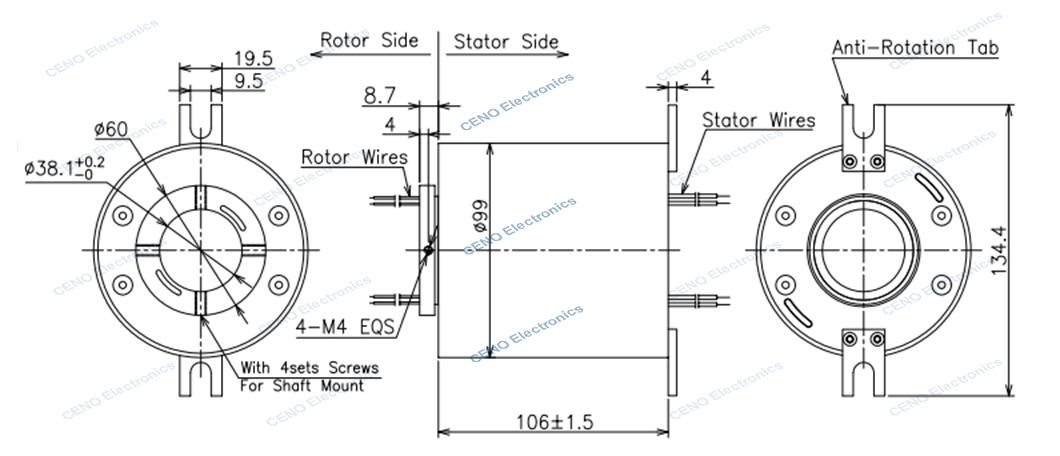

    Outline drawing



    Application


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
