    Diameter 190mm Low Temperature Slip Ring With Megabit Ethernet Signal

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-22P-05S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Diameter 190mm Low Temperature Slip Ring With Megabit Ethernet Signal

    100M Megabit Ethernet Signal Slip Ring For Low Temperature Environments


    ECN000-22P-05S is low temperature slip ring with Megabit Ethernet signal from CENO Electronics, there are 3 circuits for 13A, 5 circuits for 5A,14 circuits for 14A, 5 circuits for 100M Ethernet signal (Megabit & Gigabit Ethernet signal optional) and one wire PE. It’s working stably at speed of 0~20rpm in temperature of -40°C to +40°C, the external diameter is 190mm and can be customized as different application, due to it’s stable transmission, no packet loss, no loss and ultra-long distance transmission, it’s usually apply to the wire-drawing machine, communication system, turntable test equipment and automatic equipment.


    Features

    • Can combined multiple signals and various currents
    • No electromagnetic interference between current & signal.
    • Install easily & transmit stably

    Applications

    • Automatic machine
    • Communication systems
    • Measuring instrument
    • Turntable test equipment
    • Filling machinery

    Optional

    • Circuit number & Current
    • Channels Ethernet type
    • Materials
    • Combine signals
    • Protection grade


    Specification

    ECN000-22P-05S

    Specification
    Current & Circuits3circuits*13A, 5circuits*5A, 14circuits*14A, 5circuits*100M Ethernet (Signal), 1circuit * PE
    Rating Voltage0~380VAC/24VDC
    Dielectric strength

    ≥1000VAC@50Hz,60s (Power)

    ≥300VAC@50Hz,60s (Signal)

    Isolation resistance

    ≥500MΩ@500VDC (Power)

    ≥100MΩ@100VDC (Signal)

    Electrical noise≤30mΩ (50rpm)
    Operating speed0~20rpm
    Contact materialPrecious metal
    Housing materialAluminum alloy
    Working temperature-40°C~+40°C
    Working humidity85%
    IP protection gradeIP55
    External diameterØ190mm
    Lead wire size3*2.5mm² wire; 7*2.5mm² wire; 2*2*0.75mm² Twisted Shield wire; 1*25mm² wire
    Lead wire length

    Rotor : 5000mm/12000mm

    Stator : 27000mm(with plug on cable)

    InstallationWith 4 screw spindle fixed on the axis of rotation

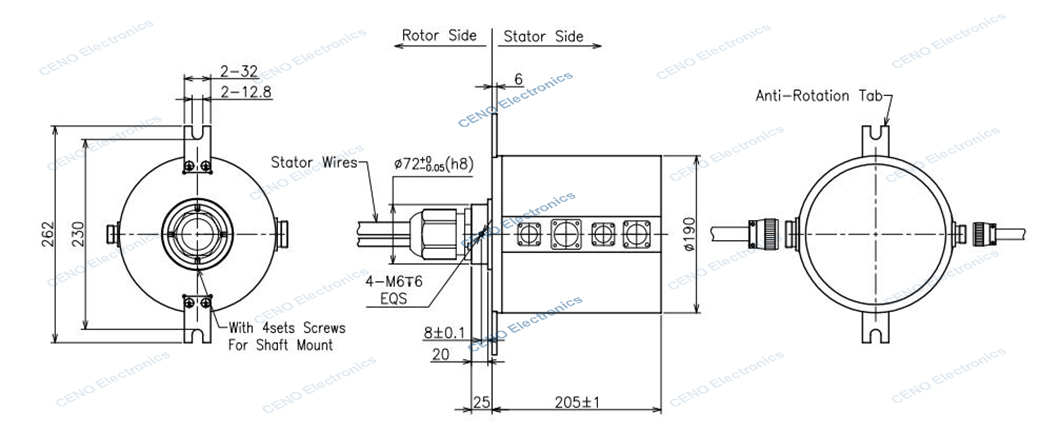

    Outline drawing



    Application


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
