    Multi Channels High Speed Slip Ring ODM With Capsule For Industry Application 1800rpm

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ACN-64S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union, L/C
    Supply Ability : 1000pcs per month
    Delivery Time : 1 weeks
    • Product Details
    • Company Profile

    Multi Channels High Speed Slip Ring ODM With Capsule For Industry Application 1800rpm

    Multi-channels high speed ODM slip ring with capsule for industry application


    ACN-64S is a multi-channels high speed slip ring with capsule for industry application from CENO Electronics. It has small compact structure and flexible spec options to fulfill the various & complex requirements of the system. The channels are 64 and 1 to 500 can be optional, working speed is 1800rpm and up to 10000rpm as special requirements. CENO adopts the advanced technology to ensure High concentricity for high speed slip ring, and adopts special technology in the structure between the stator and rotator for ensuring the slip ring performance stably during it rotating under high speed. For further more information, Please contact us https://www.ceno360.com/rfq/




    Features

    • Can combined multiple data and various currents
    • Flexible options to fulfill various and complex systems
    • Small compact structure, Install easily & transmit stably

    Applications

    • Automatic machine
    • Communication systems
    • Test facilities & instruments
    • Non-destructive detector
    • Surveillance systems

    Optional

    • Circuit number & Current
    • Data channels
    • Materials
    • Protection gradeWorking speed





    Specification

    ACN-64S

    Specification
    Current & Circuits64circuits*Signal,1group*PE
    Dielectric strength≥100VAC@50Hz
    Isolation resistance≥10MΩ@100VDC
    Contact resistance≤10mΩ
    Contact resistance fluctuation≤20mΩ
    Operating speed0~1800rpm
    Contact materialPrecious metal
    Housing materialAluminum alloy
    Working temperature-20°C~+60°C
    Working humidity5%~85%RH
    IP protection gradeIP51
    Lead wire sizeCoaxial Cable
    Lead wire length

    Rotor : 300mm±10mm

    Stator : 300mm±10mm

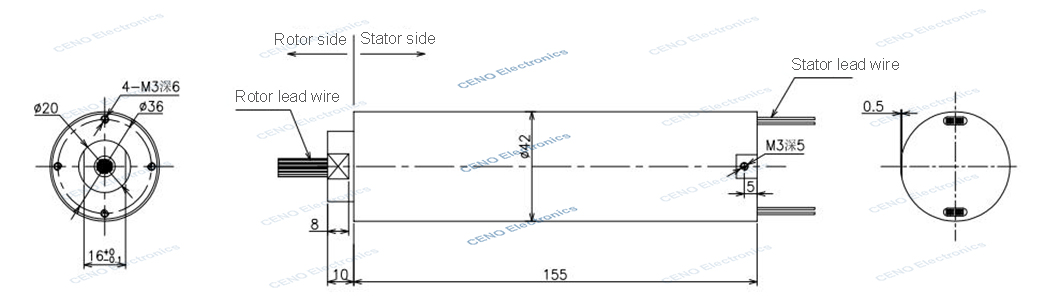

    Outline drawing







    Why with CENO
    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
