    1000M Gigabit Ethernet Slip Ring With Flange 300rpm Precious Metal

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-04P2-08P1-01EG
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

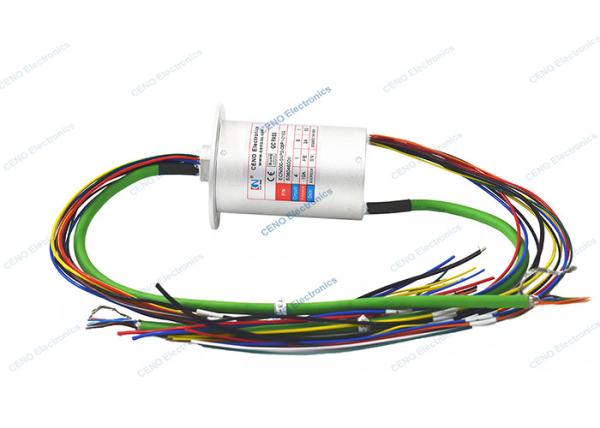

    1000M Gigabit Ethernet Slip Ring With Flange 300rpm Precious Metal

    1000M Gigabit Ethernet Slip Ring With Flange For Industry Applications


    ECN000-04P2-08P1-01EG is a new product named 1000M Gigabit Ethernet slip ring for automation system application from CENO Electronics. During the past 20+ years, our engineers have developed the capability to design and manufacture the advanced Ethernet slip ring for the communication system, Turntable equipment, Filling machine and the smart home system applications - applications where precise control of stable transmit, non string code, low loss and ultra-long distance transmission are critical. For more information about how CENO’s slip ring can fit your specific application, pls contact us freely.


    Features

    • Can combined multiple data and various currents
    • No electromagnetic interference between current & signal.
    • Install easily & transmit stably

    Applications

    • Actuation technology
    • Communication systems
    • Smart home system
    • Turntable test equipment
    • Filling machine

    Optional

    • Circuit number & Current
    • Channels & Ethernet type
    • Materials
    • Protection grade
    • Working speed


    Specification

    ECN000-04P2-08P1-01EG

    Specification
    Current & Circuits4 circuits*10A, 1 circuit*PE, 8 circuits*2A; 1 circuits* Gigabit Ethernet
    Rating Voltage0~400VAC/VDC
    Dielectric strength

    ≥1000V@50Hz (current)

    ≥300VAC@50Hz (signal)

    Isolation resistance

    ≥500MΩ@500VDC

    ≥100MΩ@300VDC

    Electrical Noise≤30mΩ
    Operating speed0~300rpm
    Contact materialPrecious metal, Gold to gold
    Housing materialAluminum Alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP51
    Installation WayFlange installation on the stator side
    Lead wire sizeAWG17#22# Wire Teflon® UL

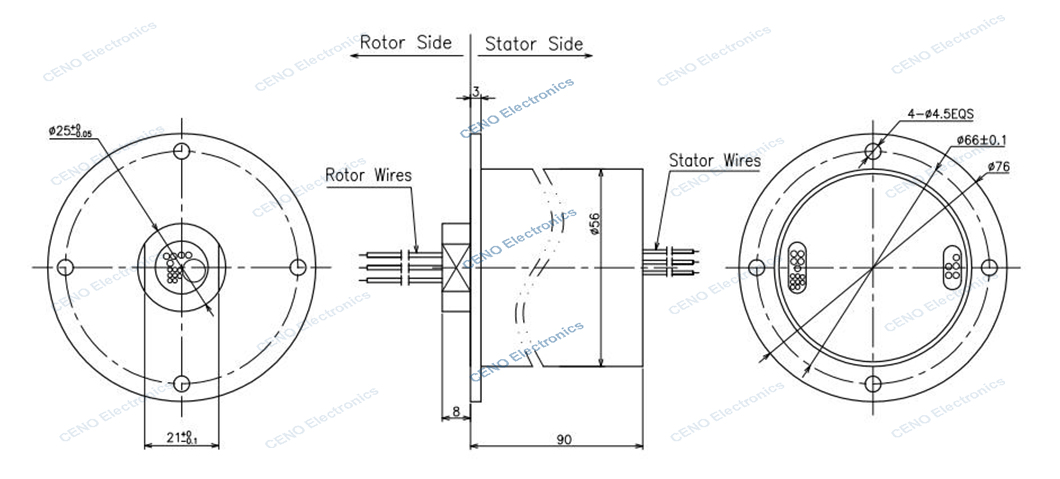

    Outline drawing



    Application


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
