    10000rpm ODM OEM High Speed Slip Ring With Encoder And Through Hole Collector

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN012-04S-GS
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union, L/C
    Supply Ability : 1000pcs per month
    Delivery Time : 1 weeks
    • Product Details
    • Company Profile

    10000rpm ODM OEM High Speed Slip Ring With Encoder And Through Hole Collector

    ODM OEM High Speed Slip Ring With Encoder And Through hole Collector


    ECN012-04S-GS is CENO’s new product that’s an integrated Slip Ring with Encoder signal and high speed for Industry application. The high speed slip ring that is working speed over than 2000rpm and with stable performance.Encoder is a device that compiles and converts signals or data into signals that can be communicated, transmitted and stored. Both of these two features appears on this CENO’s new designed slip ring. Most of the parameters are optional, for more information about how CENO’s slip ring can fit your specific application, pls contact us freely. https://www.ceno360.com/rfq/




    Features

    • High speed with 10000rpm
    • Compact structure, small dimension & light weight
    • Install easily & transmit stably
    • Parameters are optional

    Applications

    • Automatic machine
    • Inspection equipment
    • Engineering Machinery
    • Test facilities & instruments
    • Eddy current testing

    Optional

    • Current & Circuits
    • Signal type & Materials
    • Protection grade
    • Working speed
    • Boundary dimension




    Specification

    ECN012-04S-GS

    Specification
    Current & Circuits2 circuits * T-style signal
    Rating Voltage0~24VAC/VDC
    Dielectric strength≥100V@50Hz
    Isolation resistance≥50MΩ@100VDC
    Contact resistance≤30mΩ ( 50rpm )
    Operating speed0~10000rpm
    Contact materialPrecious Metal
    Housing materialAluminum Alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP51
    Lead wire sizeT-type Encoder wire
    Lead wire length

    Rotor : 1000mm

    Stator : 3000mm

    Inner diameterØ12.8mm
    InstallationFix rotor side to guest main shaft with screws

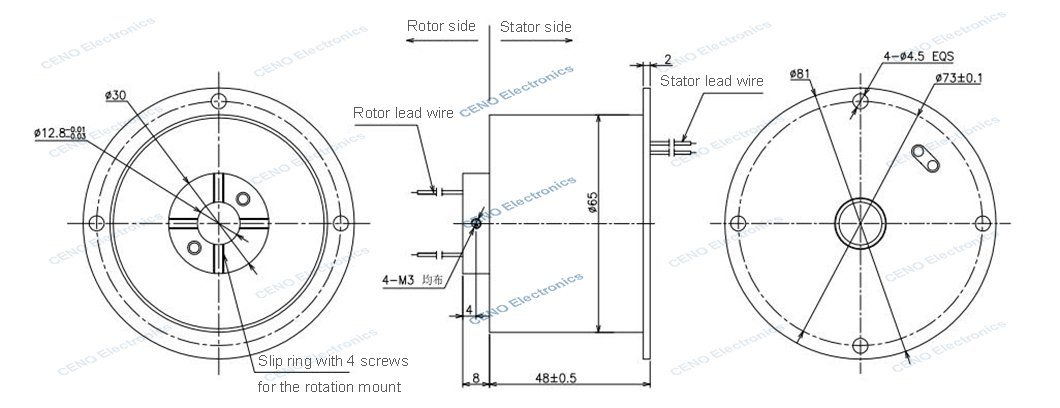

    Outline drawing







    Why with CENO
    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
