    IP50 Capsule Slip Ring With Optional Parameters For Small Rotation System

    Ask Lasest Price
    Brand Name : CENO
    Model Number : BCN12U-04(10M)
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    IP50 Capsule Slip Ring With Optional Parameters For Small Rotation System

    Capsule slip ring with optional parameters for small rotation system


    BCN12U-04(10M) is a miniature capsule slip ring that transmit 4 circuits weakness electric signal from CENO’s Electronics. For the compact structure and domestic leading military technology and high design accuracy, it always used in any electromechanical system that requires unrestrained, continuous rotation while transferring power data or signals from a stationary to a rotating structure. This miniature slip ring is especially suit for the smaller rotating systems. Most of the parameters are optional for your specific application, for more information about how CENO’s slip ring can fit your request, please contact us at https://www.ceno360.com/



    Features

    • Stator flange or without flange installation for option integrated structure design
    • Reach military quality
    • Can be integrated various data

    Applications

    • Automatic machine
    • Traffic system
    • Process control systemRadar antenna
    • Rotating turret

    Optional

    • Circuit number & Current
    • Boundary structure
    • Contact / Housing Materials
    • Protection grade
    • Working speed




    Specification

    Current & Circuits

    4 circuits * 1A

    Rating Voltage

    0~240VAC/VDC

    Dielectric strength≥500VAC@50Hz
    Isolation resistance≥100MΩ@100VDC
    Electrical NoiseMax 20mΩ
    Operating speed300rpm
    Contact materialGold to Gold
    Housing material wEngineering plastic
    Working temperature-20°C~+60°C
    IP protection gradeIP50
    Lead wire sizeAW30# Wire Teflon® UL
    Lead wire length

    Rotor : 200±5 mm

    Stator : 200±5 mm

    External diameterØ12.4mm

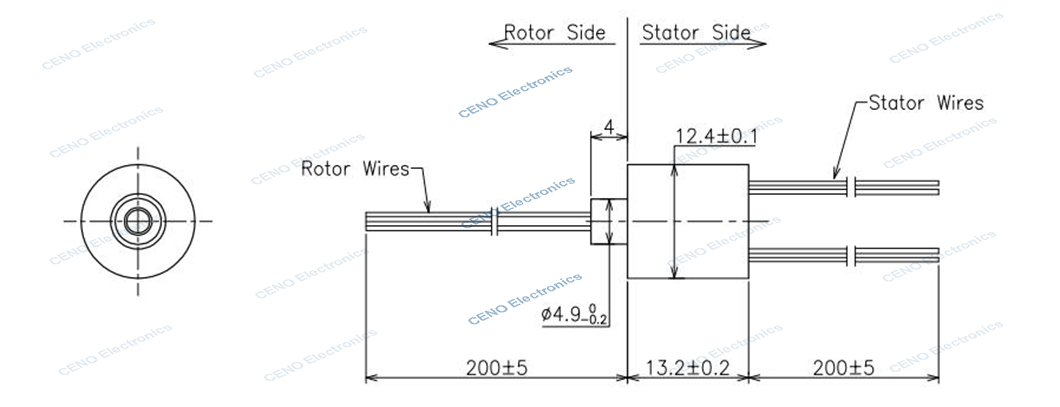

    Outline drawing



    Our Service
    1. Reply inquiry in 24 hours.
    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
    3. Answer your question detailed.
    4. Solved the problem with you during using our products.
    5. Samples will be offered to you for our future cooperation.

    FAQ

    1. What do we do?
    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

    2. How long have we been in the business?
    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

    3. What is a slip ring?
    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

    4. How do I choose a slip ring?
    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

    5. Do you offer custom slip rings?
    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

    Why with CENO
    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.

    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
