    36 Circuits 10A Hollow Shaft Slip Ring With Electrical Collector For Industrial

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN050-36P2
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    36 Circuits 10A Hollow Shaft Slip Ring With Electrical Collector For Industrial

    Hollow Shaft Slip Ring With Electrical Collector For Industrial Application


    ECN050-36P2 is CENO’s new product through hole slip ring, also called through bore, hollow shaft slip ring or electrical collector, due to it has high performance and economic, it’s widely used to various industrial machinery, harsh environments as the mines, mountains and the offshore. CENO have over 5000 designs and most of the slip ring parameters are optional, if you can not find perfect slip ring to fit your specific application in our product list, please contact us slip ring expert, we will design for you.


    Features

    • Quiet mechanical system work
    • Through hole diameter 3mm-2000mm are optional
    • Can be integrated various data
    • Install easily & transmit stably

    Applications

    • Automatic machine
    • Harsh environment
    • Offshore
    • Industrial machinery
    • Mines / Mountain areas

    Optional

    • Circuit number & Current
    • Boundary dimension
    • Contact / Housing Materials
    • Protection grade
    • Working speed

    Specification

    ECN050-36P2

    Specification
    Current & Circuits36 circuits*10A
    Rating Voltage

    0~380VAC/VDC

    Dielectric strength≥1000VAC@50Hz
    Isolation resistance≥500MΩ@500VDC
    Contact resistance30mΩ
    Contact materialPrecious Metal
    Housing materialAluminum alloy
    Operating speed0~300rpm
    Working temperature-20°C~+60°C
    Working humidity60%
    IP protection gradeIP54
    Lead wire sizeAWG 17# Tin coated Teflon® UL
    Lead wire length

    Rotor : 300 mm

    Stator : 300 mm

    Inner Diameter50mm
    Rotation wayFix up stator side on guest shaft with screws

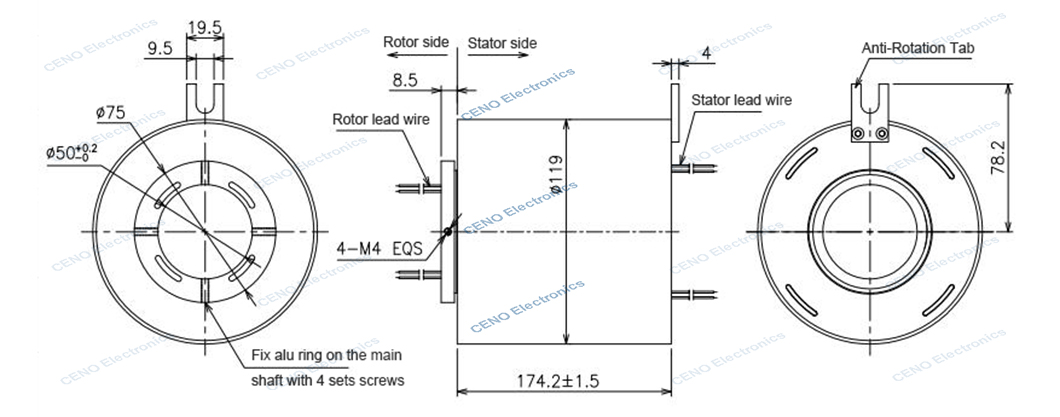

    Outline Drawing


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
