    0 - 1000rpm High Speed Slip Ring With Electrical Collector For Industrial Application

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN038-06P2-GS
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union, L/C
    Supply Ability : 1000pcs per month
    Delivery Time : 1 weeks
    • Product Details
    • Company Profile

    0 - 1000rpm High Speed Slip Ring With Electrical Collector For Industrial Application

    High Speed Slip Ring With Electrical Collector For Industrial Application


    ECN038-06P2-GS is a high speed slip ring with 1000rpm & through hole 38mm for industrial application from CENO Electronics. High speed slip ring is one of the function slip rings, the highest rotation speed can be up to 10000rpm as specific applications, it has compact structure, small and light weight, stable performance and long service life. Mainly apply to the Test facilities and instruments, inspection equipment and Eddy current testing machinery. For more information about how CENO’s slip ring can fit you specific applications, please contact us freely.



    Features

    • The highest rotation speed can be up to 10000rpm
    • Compact structure, small and light weight
    • Can be integrated various data
    • Install easily & transmit stably

    Applications

    • Automatic machine
    • Test facilities &instruments
    • inspection equipment
    • Eddy current testing machiner
    • Non-destructive detector

    Optional

    • Circuit number & Current
    • Boundary dimension
    • Contact / Housing Materials
    • Protection grade
    • Working speed




    Specification

    ECN038-06P2-GS

    Specification
    Current & Circuits6 circuits*10A
    Rating Voltage

    0~380 VAC

    Dielectric strength≥1000VAC@50Hz
    Isolation resistance≥500MΩ@500VDC
    Contact resistance0~70mΩ
    Contact materialPrecious Metal
    Housing materialAluminum alloy
    Inner Diameter38.1mm
    Working temperature-20°C~+60°C
    Working humidity60%
    IP protection gradeIP51
    Operating speed0~1000rpm
    Lead wire sizeAWG17# Tin coated Teflon® UL
    Lead wire length

    Rotor : 300 mm

    Stator : 300 mm

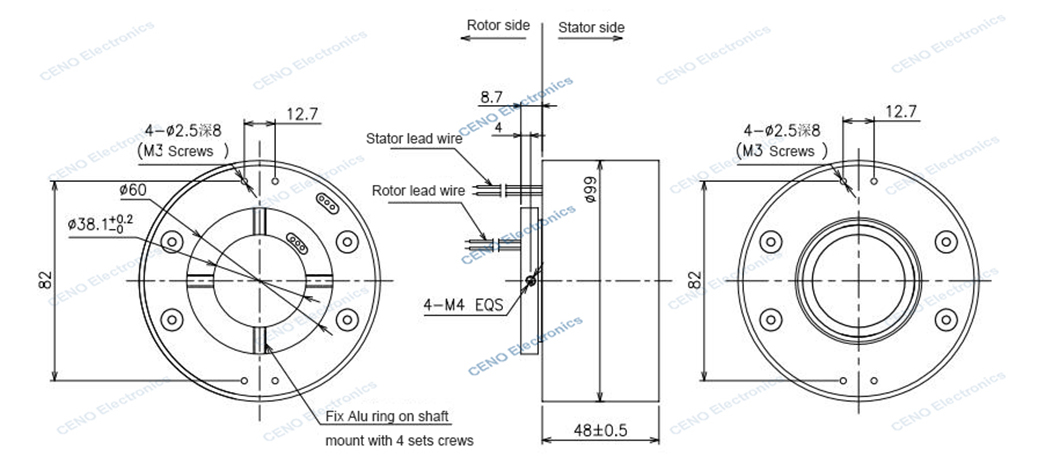

    Outline drawing







    Why with CENO
    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
