    IP67 Waterproof Slip Ring Precious Metal Contact For Industrial Automatic System

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-15P-IP67
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    IP67 Waterproof Slip Ring Precious Metal Contact For Industrial Automatic System

    Function Waterproof Slip Ring With IP67 For Industrial Automatic System


    ECN000-15P-IP67 is CENO’s new Water-proof Function Slip Ring with the IP67 for offshore equipment. Waterproof slip ring is a general term for slip ring used in special environment such as humidity, corrosion and underwater, which can solve the working problems in the underwater environment. According to it’s working environment, it is divided into multiple protection levels, such as IP65, IP67, IP68 and other protection levels and can be used underwater up 1500m. For more information about how CENO’s slip ring can fit your specific application, please contact us.


    Features

    • IP IP65, IP67,IP68 is optional and used underwater 1500m
    • Different sealing forms and boundary can be selected
    • Install easily & transmit stably

    Applications

    • Industrial automatic system
    • Offshore equipment
    • Boats and ship machinery
    • Marine equipment
    • Filling machine

    Optional

    • Circuit number & Current
    • Boundary dimension
    • Contact / Housing Materials
    • Protection grade
    • Working speed

    Specification

    ECN000-15P-IP67

    Specification
    Current & Circuits5 circuit*32A; 9circuit*10A
    Rating Voltage

    0~380VAC/VDC

    Dielectric strength

    ≥1500VAC@50Hz

    ≥300VAC@50Hz

    Isolation resistance

    ≥500MΩ@500VDC

    ≥100MΩ@300VDC

    Contact resistance30mΩ (50rpm)
    Contact materialPrecious metal
    Housing materialAluminum Alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP67
    Operating speed0~300rpm
    Lead wire size

    AW10# Wire Teflon® UL

    AW16# Wire Teflon® UL

    Lead wire length

    Rotor : 2000mm

    Stator : 2000mm

    External diameterØ99mm
    Rotation wayAnti-Rotation Tab & Flange installation

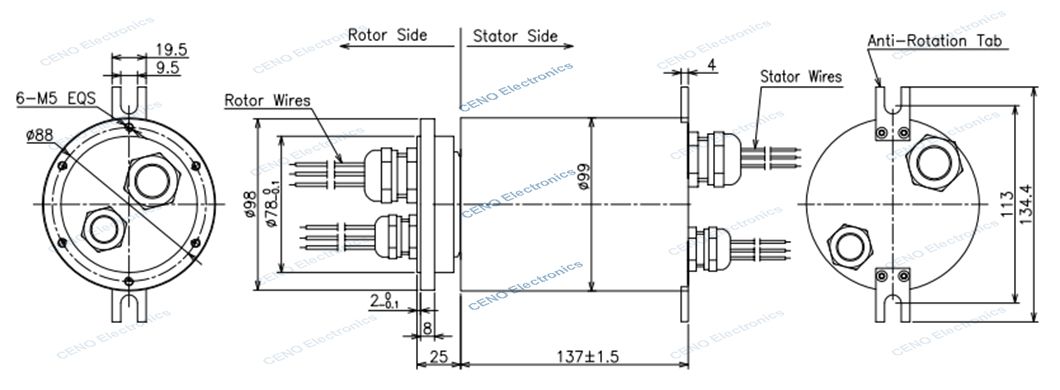

    Outline drawing


    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Why with CENO


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
