    550rpm Integrated Slip Ring With Gigabit Ethernet Signal For Automation System

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-67S-01EG
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    550rpm Integrated Slip Ring With Gigabit Ethernet Signal For Automation System

    Integrated Slip Ring With Gigabit Ethernet Signal For Automation System


    ECN000-67S-01EG is an Ethernet slip ring with Gigabit Ethernet, RS485 and power electrical signal for industrial automatic system from CENO Electronics. Ethernet slip ring has the characters of high speed and stability, strong reliability and wide application range. Can transmit 1000M Gigabit Ethernet signal stably and no electromagnetic interference between current and signal, comply with EMC electromagnetic compatibility requirements. For more information about how CENO’s slip ring can fit your specifications, please contact us.


    Features

    • Quiet mechanical system work
    • No electromagnetic interference, comply with EMC requirements
    • Can be integrated various data
    • Install easily & transmit stably

    Applications

    • Industrial automatic system
    • Intelligent housing system
    • Filling machinery
    • Security & protection system
    • Medical equipment

    Optional

    • Circuit number & Current
    • Boundary dimension
    • Contact / Housing Materials
    • Protection grade
    • Working speed




    Specification

    ECN000-67S-01EG

    Specification
    Current & Circuits47circuit*1A; 1circuit*PE;1*RS485; 9 circuits*signal; 1circuits*Gigabit Ethernet
    Rating Voltage

    0~50VAC/VDC

    Dielectric strength≥300VAC@50Hz
    Isolation resistance≥100MΩ@300VDC
    Contact resistance70mΩ (50rpm)
    Contact materialGold to Gold
    Housing materialAluminum Alloy
    Working temperature-20°C~+60°C
    Working humidity60%RH
    IP protection gradeIP51
    Operating speed0~550rpm
    Lead wire size

    AW24# Single Wire

    AW24# Eight-core Twisted Shielded Wire

    AW24# Two-core Twisted Shielded Wire

    CAT5e

    Lead wire length

    Rotor : 3000mm

    Stator : 3000mm

    External diameterØ86mm
    Rotation wayAnti-Rotation Tab

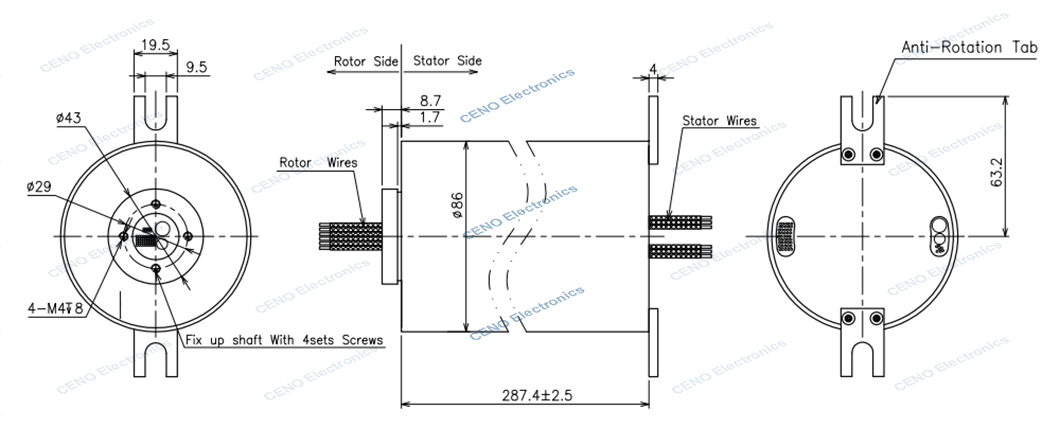

    Outline drawing




    Our Service
    1. Reply inquiry in 24 hours.
    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
    3. Answer your question detailed.
    4. Solved the problem with you during using our products.
    5. Samples will be offered to you for our future cooperation.

    FAQ

    1. What do we do?
    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

    2. How long have we been in the business?
    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

    3. What is a slip ring?
    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

    4. How do I choose a slip ring?
    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

    5. Do you offer custom slip rings?
    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

    Why with CENO
    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.

    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
