    IP54 Hollow Shaft Slip Ring Through Hole ID 35mm With Electrical Collector

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN035-12P
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    IP54 Hollow Shaft Slip Ring Through Hole ID 35mm With Electrical Collector

    Hollow Shaft Slip Ring With Through Hole ID35mm Electrical Collector


    ECN035-12P is CENO’s new designed Through Hole Slip Ring with ID35mm and 12circuits for electrical collector for industrial automatic system. As a basic slip ring Through hole slip ring often combine kinds data and other signals to a integrated slip ring, such as compatible with Pneumatic Hydraulic Rotary Union, RF Rotary union, FORJ or other signal as the Ethernet, profi-bus, Encoder and HDMI etc. Through hole slip ring is more economical and working stably comparing with other integrated slip ring, Usually apply to the harsh environment, for more information about How CENO’s slip ring can fit your applications, please contact us.


    Features

    • Quiet mechanical system work
    • Can be integrated different data, signals & Pneumatic/Hydraulic
    • Stable performance, install easy

    Applications

    • Automatic machinery
    • Electrical Crane
    • Electric Winch
    • Offshore Equipment

    Optional

    • Circuits & Current
    • Contact / Housing Materials
    • IP Grade
    • Working speed


    Specification

    ECN035-12P

    Specification
    Current & Circuits12 circuits * 6A
    Rating Voltage

    0~380VAC/VDC

    Dielectric strength≥1000VAC@50Hz
    Isolation resistance≥500MΩ@500VDC
    Contact resistance70mΩ (50rpm)
    Contact materialPrecious metal
    Housing materialAluminum Alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP54
    Operating speed0~300rpm
    Lead wire sizeAW22# Wire Teflon® UL

    Lead wire length

    Rotor : 1000mm

    Stator : 300mm

    Inner diameterØ35mm
    External diameterØ99mm
    Rotation wayFix rotor side on the main shaft with screws

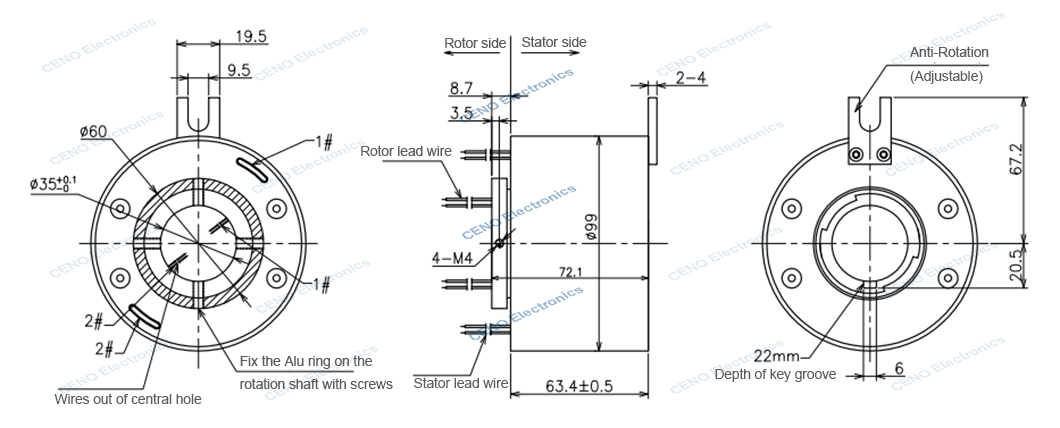

    Outline Drawing



    Why with CENO


    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof
    Single channel fiber optic rotary joint 6.8mm OD stainless steel

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
