    0 - 480V AC/DC Pneumatic Rotary Union With Electrical Connector / Ethernet Signal Slip Ring

    Ask Lasest Price
    Brand Name : CENO
    Model Number : QCN0201-06P3-04P1-01EM
    Certification : ISO9001,CE,RoHS
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    0 - 480V AC/DC Pneumatic Rotary Union With Electrical Connector / Ethernet Signal Slip Ring

    Pneumatic Rotary Union with Electrical connector & Ethernet Signal Slip Ring


    QCN0201-06P3-04P1-01EM is CENO's another new design Integrated slip ring for the industrial system recently. Which is combined 6circuits for Power, 4circuits for data, 1group for Ethernet signal and 2 channels for air. We have more than 5000 designs in past twenty years, and they are widely apply to many kinds industrial system. Based on it’s stable performance, long service life and different sealing forms, the power + pneumatic / hydraulic slip ring is often individually designed or customized for CENO customers. For more specific information please contact us.


    Features

    • Combine Ethernet & Air
    • Different sealing forms and boundary can be selected
    • Can be integrated various data
    • Install easily & transmit stably

    Applications

    • Automatic machine
    • Packing machine
    • Laser cutting machinery
    • Filling machinery
    • Medical equipment

    Optional

    • Circuit, Voltage, Current
    • Channels, air or liquid
    • Contact / Housing Materials
    • Sealing forms
    • Working speed

    Specification

    QCN0201-06P3-04P1-01EM

    Specification
    Current & Circuits6 circuit*15A; 4circuit*2A; 1Group*100M Ethernet
    Rating Voltage

    0~480VAC/VDC

    Dielectric strength

    ≥1000VAC@50Hz

    ≥300VAC@50Hz

    Isolation resistance

    ≥500MΩ@500VDC

    ≥100MΩ@100VDC

    Contact resistance30mΩ (50rpm)
    Contact materialPrecious metal / Gold to Gold
    Housing materialStainless steel + Aluminum Alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP50
    Operating speed0~50rpm
    Lead wire size

    AW14# Wire Teflon® UL

    AW24# Wire Teflon® UL

    CAT5e + RJ45 (male)

    Lead wire length

    Rotor : 2000mm

    Stator : 2000mm

    External diameterØ86mm
    Rotation wayFlange installation
    The road2 channels air
    Pressure≤ 8 Bar
    Connection diameterG 1/8”
    Pip diameterØ10mm
    Torque5N*m

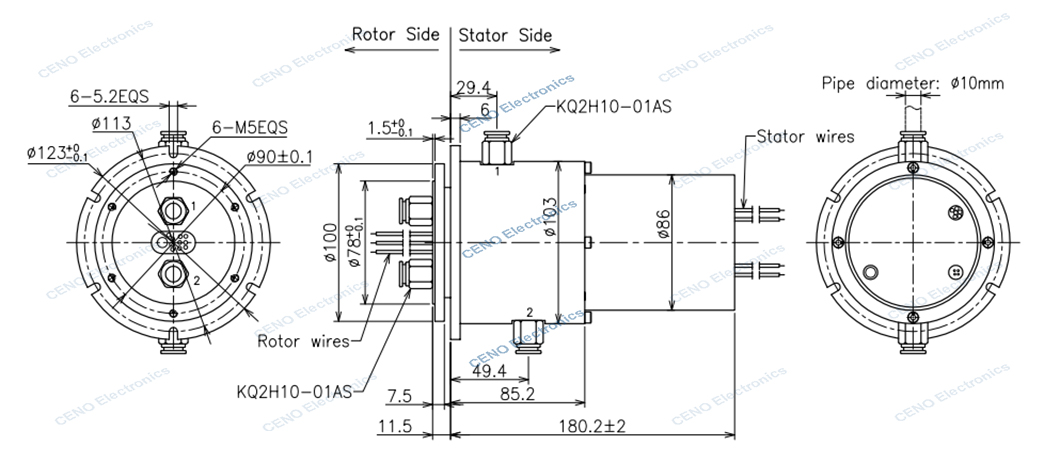

    Outline Drawing


    Our Service

    1. Reply inquiry in 24 hours.

    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

    3. Answer your question detailed.

    4. Solved the problem with you during using our products.

    5. Samples will be offered to you for our future cooperation.


    FAQ


    1. What do we do?

    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.


    2. How long have we been in the business?

    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.


    3. What is a slip ring?

    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.


    4. How do I choose a slip ring?

    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.


    5. Do you offer custom slip rings?

    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
