    PROFINET Ethernet Slip Ring With RS232 Signal Swivel For Automatic System

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-06P-02S-01EM
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    PROFINET Ethernet Slip Ring With RS232 Signal Swivel For Automatic System


    PROFINET Ethernet Slip Ring With RS232 Signal Swivel For Automatic System


    ECN000-06P-02S-01EM is CENO’s new product PROFINET Slip Ring. CENO’s PROFINET slip ring have been developed to provide reliable products to allow transfer of the PROFINET protocol through a rotating interface.The innovative designs meet the challenge of matching impedance, controlling crosstalk and managing losses. A wide range of product solutions are offered with combinations of data and power in multiple mechanical configurations to meet your application needs. For more information about how CENO's PROFINET slip ring solutions can be tailored for your specific application, please contact us.


    Features

    • High performance contact technology
    • Pre-configured for Ethernet & HD transmission
    • Install easily & transmit stably

    Applications

    • Motion control
    • Packing machine
    • Filling machinery
    • CCTV IP-surveillance
    • Medical equipment

    Optional

    • Circuit, Voltage, Current
    • Channels
    • Signal type
    • Contact / Housing Materials
    • Working speed


    Specification

    Current & Circuits

    2circuit*20A; 2circuit*30A; 2circuit*5A;1*RS232 Signal, 1*Profinet

    Rating Voltage

    0~480VAC/VDC

    Dielectric strength≥300VAC@50Hz
    Isolation resistance≥100MΩ@300VDC
    Contact materialPrecious metal / Gold to Gold
    Housing materialAluminum Alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP50
    Operating speed0~300rpm
    Lead wire size

    AW12# 22#Wire Teflon® UL

    Two-core twisted shielded wires

    CAT5e

    Lead wire length

    Rotor : 4000mm

    Stator : 1000mm

    External diameterØ86mm

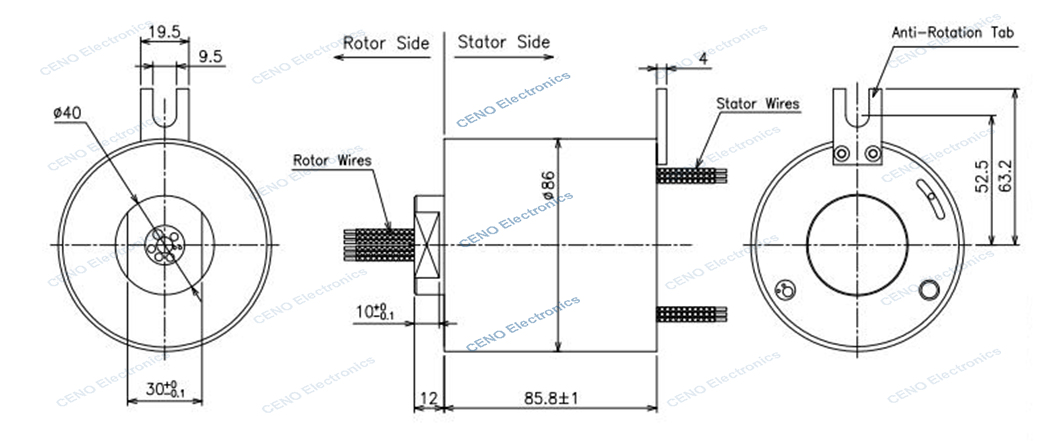

    Outline Drawing


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
