    IP67 Waterproof Mechanical Slip Ring For Industrial System / Humidity Environment

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-16P-IP67
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    IP67 Waterproof Mechanical Slip Ring For Industrial System / Humidity Environment

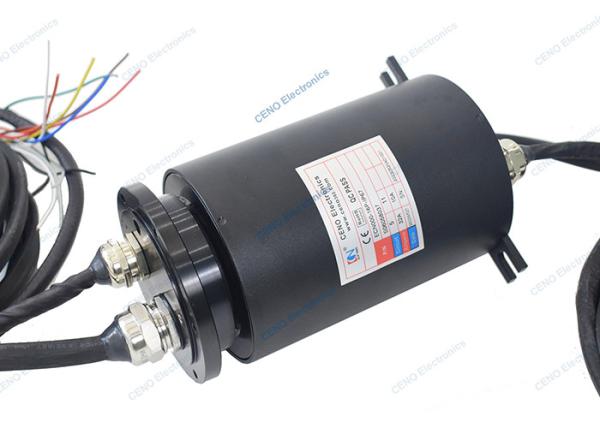

    IP67 Waterproof mechanical Slip Ring For Industrial system Or Humidity Environment


    ECN000-16P-IP67 is CENO’s new design IP67 water proof slip ring for open country or outdoors application. CENO has delivered trusted technology products and services to the land or offshore petroleum, seismic and maritime industries, and we designs and manufactures for about 5000designs in nearly 20 years. CENO Water proof slip ring are designed to function in extreme humidity and harsh wild outdoor environment.For more information about how CENO’s water proof slip ring or other function slip ring can fit your specific wording environment, please contact us.


    Features

    • Protection grade IP67
    • Different sealing forms and boundary can be selected
    • Can be integrated various data
    • Install easily & transmit stably

    Applications

    • Offshore petroleum
    • Marine
    • Mine
    • Outdoor Machinery
    • Medical Equipment

    Optional

    • Circuit, Voltage, Current
    • Protection grade
    • Contact / Housing Materials
    • Sealing forms
    • Working speed

    Specification


    ECN000-16P-IP67

    Specification
    Current & Circuits

    5circuits*32A; 11circuit*10A;

    Rating Voltage

    0~380VAC/VDC

    Dielectric strength

    ≥1500VAC@50Hz (P)

    ≥300VAC@50Hz (S)

    Isolation resistance

    ≥500MΩ@500VDC (P)

    ≥100MΩ@300VDC (S)

    Electrical Noise30mΩ (50rpm)
    Contact materialPrecious Metal
    Housing materialAluminum Alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP67
    Operating speed0~300rpm
    Lead wire sizeAW10# 16 #Wire Teflon® UL

    Lead wire length

    Rotor : 3000mm

    Stator : 3000mm

    External diameterØ99mm

    Outline drawing


    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Why with CENO


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
