    Integrated Encoder Slip Ring With Through Hole ID 38mm Electrical Power Collector

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN038-04P4-12S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Integrated Encoder Slip Ring With Through Hole ID 38mm Electrical Power Collector


    Integrated Encoder slip ring with through hole ID38mm electrical power Collector


    ECN038-04P4-12S is a new design integrated slip ring compatible with encoder and Electrical Rotary Joint From CENO Electronics. Typical Electrical conductive slip rings are part of a comprehensive rotary interface, in addition to the fiber passes data, Encoder and signal channels. CENO is also able to integrate many kinds of rotary unions to allow the transfer of encoder data, signals, liquid or gas across the rotary interface. And it is also common to incorporate other rotary components, such as motors, resolver and actuators into advanced rotary interface assemblies. These rotary interface solutions can be provided to meet unique environmental requirements. You are welcome for your specific applications.


    Features

    • Integrated electrical and encoder
    • Can be integrated various data, electrical power and signals
    • Install easily & transmit stably
    • High frequency bandwidth

    Applications

    • Automatic system
    • Engineering Machinery
    • Ship crane
    • Offshore equipment
    • Oil well drilling

    Optional

    • Circuit, Voltage, Current
    • Channels
    • Contact / Housing Materials
    • Installations
    • Working speed


    Specification

    ECN038-04P4-12S

    Specification
    Current & Circuits

    4 circuits*20A; 1*PE; 12circuit*Encoder

    Rating Voltage

    0~380VAC/VDC

    Dielectric strength

    ≥1500VAC@50Hz

    ≥300VAC@50Hz

    Isolation resistance

    ≥500MΩ@500VDC

    ≥300MΩ@300VDC

    Electrical Noise30mΩ (50rpm)
    Contact materialPrecious Metal
    Housing materialAluminum Alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP51
    Operating speed0~100rpm
    Lead wire sizeAWG12#/17# Wire Teflon® UL

    Lead wire length

    Rotor : 300mm

    Stator : 500mm

    Inner DiameterØ38.0mm
    External DiameterØ99mm
    InstallationFix up stator side with anti-rotation side Shaft drives rotor running

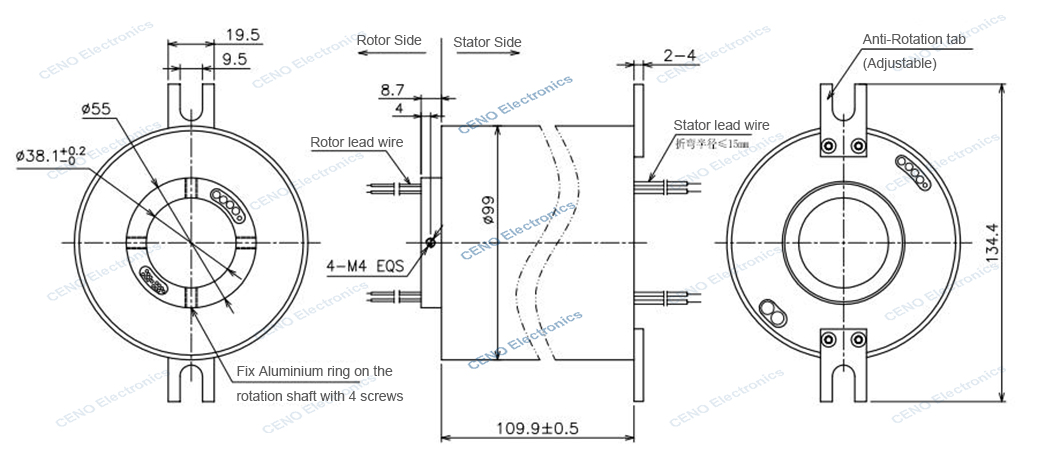

    Outline Drawing


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
