IP67 Waterproof Through Hole Slip Ring ID 150mm For Automatic Industrial System

CENO Electronics Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap IP67 Waterproof Through Hole Slip Ring ID 150mm For Automatic Industrial System from wholesalers

    Buy cheap IP67 Waterproof Through Hole Slip Ring ID 150mm For Automatic Industrial System from wholesalers
    • Buy cheap IP67 Waterproof Through Hole Slip Ring ID 150mm For Automatic Industrial System from wholesalers
    • Buy cheap IP67 Waterproof Through Hole Slip Ring ID 150mm For Automatic Industrial System from wholesalers
    • Buy cheap IP67 Waterproof Through Hole Slip Ring ID 150mm For Automatic Industrial System from wholesalers

    IP67 Waterproof Through Hole Slip Ring ID 150mm For Automatic Industrial System

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN150-12P1-IP67
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    IP67 Waterproof Through Hole Slip Ring ID 150mm For Automatic Industrial System

    IP67 Waterproof through hole Slip Ring with ID150mm for automatic industrial system


    ECN150-12P1-IP67 is water proof slip ring with IP67 and large size inner bore 150mm electrical collector from CENO Electronics. CENO has delivered trusted technology products and services to the offshore petroleum, oceanographic, seismic and maritime industries for nearly 20 years. CENO water-proof slip rings are designed to function in extreme marine environments. CENO has over than 5000 designs for various industrial these years. For more information about how CENO’s slip ring can fit your specific applications, please contact us.


    Features

    • Different sealing forms and boundary can be selected
    • Can be integrated various data
    • Install easily & transmit stably
    • Extended protection grade IP67

    Applications

    • Mine
    • Offshore
    • oceanographic
    • Marine industrial
    • Medical equipment

    Optional

    • Circuit, Voltage, Current
    • Protection Grade
    • Contact / Housing Materials
    • Lead wires
    • Working speed

    Specification

    ECN150-12P1-IP67

    Specification
    Current & Circuits

    12circuits*5A

    Rating Voltage

    0~250VAC/VDC

    Dielectric strength≥1000VAC@50Hz
    Isolation resistance≥500MΩ@500VDC
    Electrical Noise30mΩ (50rpm)
    Contact materialPrecious Metal
    Housing materialStainless steel + Aluminum Alloy
    Working temperature-20°C~+60°C
    Working humidity60%RH
    IP protection gradeIP67
    Operating speed0~40rpm
    Lead wire sizeSix-core Cable

    Lead wire length

    Rotor : 1000mm

    Stator : 1000mm

    Inner DiameterØ150mm
    External DiameterØ298mm
    InstallationFix stator side to main shaft

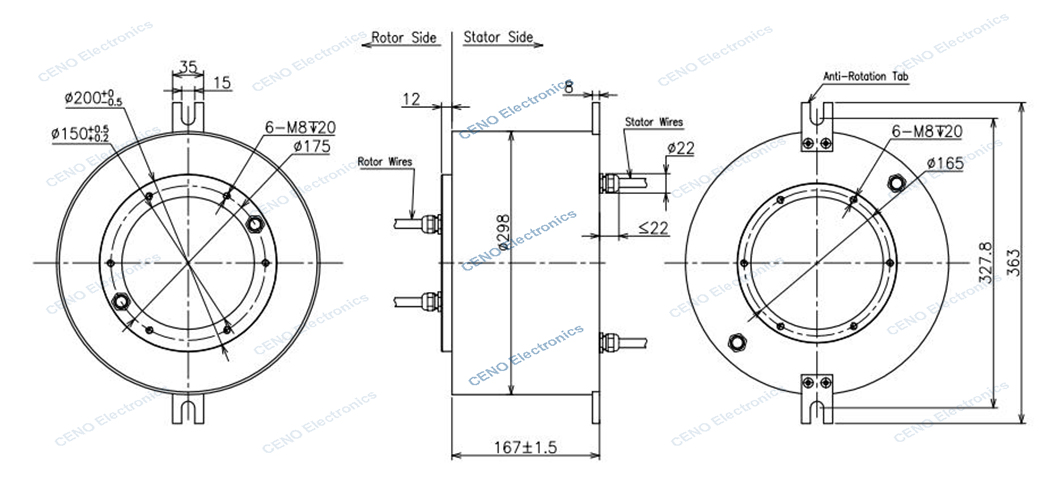

    Outline drawing


    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Why with CENO


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
