    ID 100mm Through Hole Slip Ring With IP65 Rotating Connector Electrical Swivel

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN100-06P2-02P1-IP65
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    ID 100mm Through Hole Slip Ring With IP65 Rotating Connector Electrical Swivel

    ID100mm Through Hole Slip Ring With IP65 Rotating Connector Electrical Swivel


    ECN100-06P2-02P1-IP65 is CENO new design through hole slip ring with inner diameter Ø100mm for industrial applications. A electrical slip ring can be used in any electro -mechanical system that requires unrestrained, intermittent or continuous rotation while transferring power and or data. Electrical slip ring is also called a rotary electrical joint, collector, commutator or swivel. A slip ring can improve system performance by simplifying operations and eliminating damage prone wires. More information please contact us.


    Features

    • Debris free operation
    • Can be integrated various data
    • Install easily & transmit stably
    • Extended life versus traditional composite brushes

    Applications

    • Automation equipment
    • Packing machine
    • Paper & film converting
    • Machine tools
    • Medical equipment

    Optional

    • Circuit, Voltage, Current
    • Signal types
    • Contact / Housing Materials
    • Protection grade
    • Working speed


    Specification

    ECN100-06P2-02P1-IP65

    Specification
    Current & Circuits

    6circuits*10A; 2circuit*2A

    Rating Voltage0~240VAC/VDC
    Dielectric strength≥1000VAC@50Hz
    Isolation resistance≥300MΩ@300VDC
    Electrical Noise30mΩ (50rpm)
    Contact materialPrecious Metal
    Housing materialAluminum Alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP65
    Operating speed0~100rpm
    Lead wire sizeAWG17#22# Wire Teflon® UL

    Lead wire length

    Rotor : 1000mm

    Stator : 1000mm

    Inner DiameterØ100mm
    External DiameterØ185mm
    InstallationFix stator side to main shaft

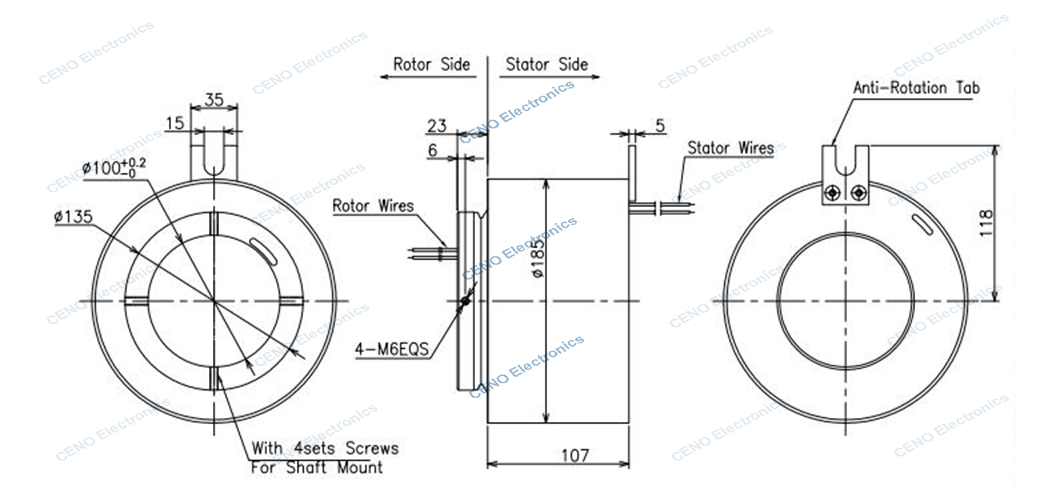

    Outline Drawing


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof
    Single channel fiber optic rotary joint 6.8mm OD stainless steel

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
