    Encoder Signal Integrated Slip Ring 400VAC With IP65 Rotary Electrical Joint

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-014P1-06S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Encoder Signal Integrated Slip Ring 400VAC With IP65 Rotary Electrical Joint


    Encoder Signal Integrated Slip Ring with IP65 Rotary Electrical Joint


    ECN000-014P1-06S is CENO new integrated slip ring which combined electrical signals and 1group Encoder signal, the protection grade is IP65 and can be up to IP68 for custom specific applications. Encoder is a sensor used to measure or control the position, speed or direction of an object in a system.

    In addition to producing compact, high reliable, Encoder integrated slip rings, CENO has provided units that combine conventional electrical slip rings with fiber optic rotary joint, RF Rotary union, Pneumatic / hydraulic rotary union and other commodities. More information please contact us.


    Features

    • Combined Encoder signals
    • Different sealing forms and boundary can be selected
    • Can be integrated various data
    • Adjustable terminal easy install

    Applications

    • Robot or manipulator
    • GPS as the aerospace
    • Security system
    • Test measurement
    • Machine tool processing

    Optional

    • Circuit, Voltage, Current
    • Encoder types
    • Contact / Housing Materials
    • Protection grade
    • Working speed

    Specification

    ECN000-014P1-06S

    Specification
    Current & Circuits14circuits*5A; 1group*Encoder signal
    Rating Voltage0~400VAC/VDC
    Dielectric strength≥500VAC@50Hz
    Isolation resistance≥500MΩ@500VDC
    Electrical Noise30mΩ (50rpm)
    Contact materialGold to Gold / Precious Metal
    Housing materialAluminum Alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP65
    Operating speed0~300rpm
    Lead wire size

    AWG20# Wire Teflon ® UL

    Six core twisted shielded wires (0.3mm²)

    Lead wire length

    Rotor : 1000mm

    Stator : 1000mm

    External diameterØ86mm

    Outline Drawing


    Why with CENO

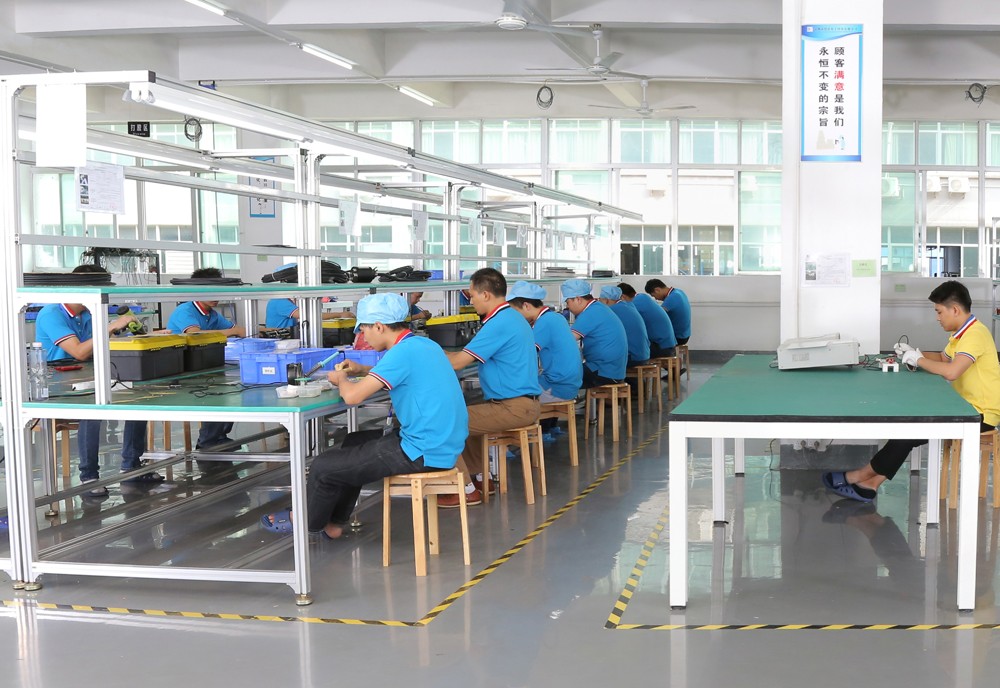

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
