    T type Thermocouple Detection Slip Ring Through Hole With High Speed 10000rpm

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN011-04S-GS
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union, L/C
    Supply Ability : 1000pcs per month
    Delivery Time : 1 weeks
    • Product Details
    • Company Profile

    T type Thermocouple Detection Slip Ring Through Hole With High Speed 10000rpm

    Through Hole T-type Thermocouple Detection Slip Ring With High Speed 10000rpm


    ECN011-04S-GS is CENO’s new design T-type thermocouple hollow shaft slip ring with high speed up to 10000rpm for high speed detection equipment. It features the low torque, low consumption, high stable performance and long service life. For it’s compact structure, small and light weight always applied to the automatic machine, test facilities and instruments, high-speed train detect equipment. For more information about how CENO’s slip ring can fit your specific operation environments, please contact us any time.


    Features

    • T-Type thernocouple
    • High working speed is 10000rpm and can be optional
    • Compact structure small & light weight and Install easily

    Applications

    • Automatic machine
    • Test facilities & instruments
    • High-speed train detect equipment
    • Non-destructive detector

    Optional

    • Signal type and group
    • Electrical parameters
    • Contact / Housing Materials
    • Mechanical appearance
    • Operating speed




    Specification

    ECN011-04S-GS

    Specification
    Current & Circuits2 group* T-type thermocouple
    Rating Voltage0~24VAC/VDC
    Dielectric strength≥100VAC@50Hz
    Isolation resistance≥50MΩ@100VDC
    Electrical Noise30mΩ (50rpm)
    Contact materialPrecious Metal
    Housing materialAluminum Alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP51
    Operating speed0~10000rpm

    Lead wire length

    Rotor : 1000mm; Stator : 3000mm

    Inner DiameterØ11.5mm
    External diameterØ57mm
    InstallationRotor side fixed on the guest main shaft with screws

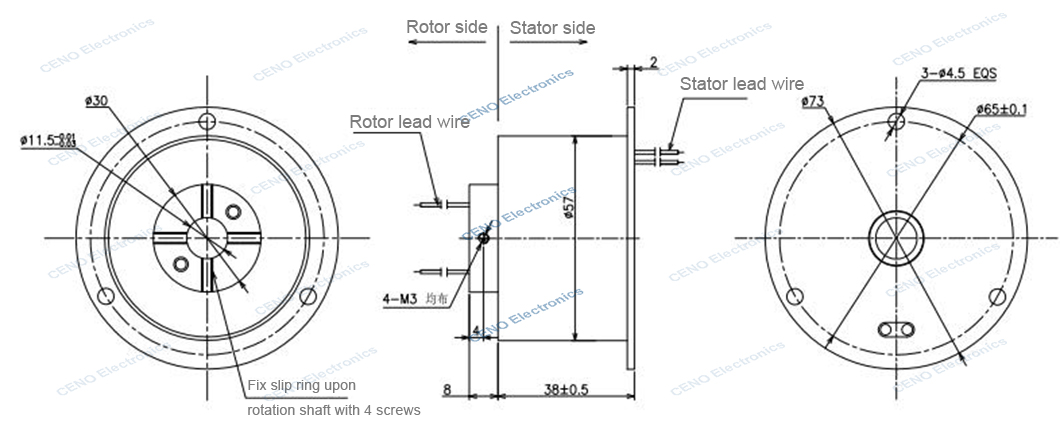

    Outline drawing








    Why with CENO
    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
