    ID25mm Through Hole Slip Ring With Electric Power Hollow Shaft Collector

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN025-10P3-02S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    ID25mm Through Hole Slip Ring With Electric Power Hollow Shaft Collector


    ID25mm Through Hole Slip Ring with Electric Power Hollow Shaft Collector


    ECN025-10P3-02S is CENO economical through hole slip ring which is designed for the automatic industrial system. CENO have six series products. One of them is Power Slip Ring, through hole slip ring as a basis and standard slip ring it has super stable performance, so it’s widely used on many kinds environments, such as the mine, offshore, wind turbine and polar range machinery. And easily integrated with other signals, data for modern information transmission systems. For more information about how CENO slip ring can fit your applications please contact us any time.


    Features

    • Basis design with through hole
    • Stable performance and can be integrated kinds data and signals
    • Economical & short deliver time
    • Install easily & transmit stably

    Applications

    • Automatic machine
    • Harsh environment
    • Packing machinery
    • Li-Ion Battery equipment
    • Mine

    Optional

    • Circuit, Voltage, Current
    • Integrated signals
    • Contact / Housing Materials
    • IP Grade
    • Working speed


    Specification

    ECN025-10P3-02S

    Specification
    Current & Circuits10circuis*15A; 1circuits*Signal
    Rating Voltage0~240VAC/VDC
    Dielectric strength

    ≥1000VAC@50Hz; ≥300VAC@50Hz

    Isolation resistance

    ≥500MΩ@500VDC; ≥100MΩ@300VDC

    Contact materialPrecious Metal / Gold to Gold
    Housing materialAluminum Alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP50
    Operating speed0~300rpm
    Lead wire size

    AWG14# Wire Teflon® UL

    K-Thermocouple cable

    Lead wire length

    Rotor : 2000mm

    Stator : 5000mm

    Inner DiameterØ25.4mm
    External diameterØ86mm
    InstallationFix up stator side with anti-rotation side shaft drives rotor running

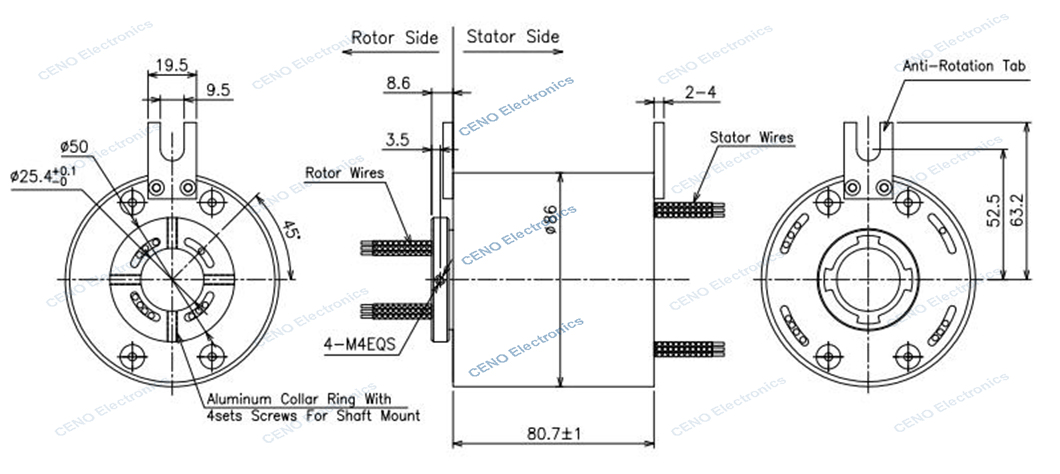

    Outline Drawing


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.




    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof
    Single channel fiber optic rotary joint 6.8mm OD stainless steel

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
