    Servo Motors Signal Slip Ring 300rpm With Through Hole Electrical Power Collector

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN038-06P2-10S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Servo Motors Signal Slip Ring 300rpm With Through Hole Electrical Power Collector

    Servo Motors Signal Slip Ring With Through Hole Electrical Power Collector


    ECN038-06P2-10S is CENO new designed product Servo Motor Signal Slip Ring which is a customized slip ring for the automatic system. In CENO all of the Servo Motor Signal Slip Rings are customized and take the hollow shaft slip ring as the center, it features several control signals are integrated in the servo motor, and through hole slip ring has the characteristics of mature technology and long service life. Servo motors are indispensable components in the automation industry, through hole slip ring as an electro- mechanical component that can transmit power, signals and gas - liquid in infinite rotation, are well matched with servo motors. More information please contact us.


    Features

    • Through hole slip ring combined servo motors
    • Customize for automatic system
    • Can be integrated various data
    • Install easily & transmit stably

    Applications

    • PCB Equipment
    • Injection Molding machine
    • Wind Turbine
    • Filling machinery
    • Medical equipment

    Optional

    • Circuit, Voltage, Current
    • Inner or external diameter
    • Contact / Housing Materials
    • Protection Grade
    • Working speed


    Specification

    ECN038-06P2-10S

    Specification
    Current & Circuits6circuis*10A; 10circuits*2A(servo motor signal)
    Rating Voltage0~380VAC/VDC
    Dielectric strength

    ≥1000VAC@50Hz

    ≥300VAC@50Hz

    Isolation resistance

    ≥500MΩ@500VDC

    ≥100MΩ@300VDC

    Contact resistance≤70mΩ (50rpm)
    Contact materialPrecious Metal
    Housing materialAluminum Alloy
    Working temperature-20°C~+60°C
    Working humidity60 %RH
    IP protection gradeIP54
    Operating speed0~300rpm
    Lead wire size

    AWG14# Wire Teflon® UL

    4/6 cores twisted shielded wire (0.14mm²)

    Lead wire lengthRotor : 500mm; Stator : 500mm
    Inner DiameterØ38.1mm
    External diameterØ99mm
    InstallationRotor side fixed upon guest main shaft with screws

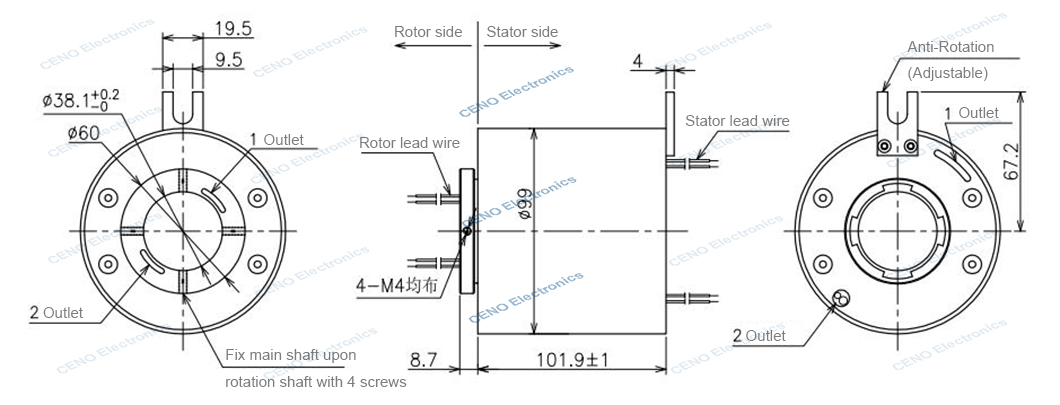

    Outline Drawing





    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
