    1000m Ethernet Signal Pneumatic Rotary Joint Union SUS 316

    Ask Lasest Price
    Brand Name : CENO
    Model Number : QCN0203-04P2-25S-01EG
    Certification : ISO9001,CE,RoHS
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

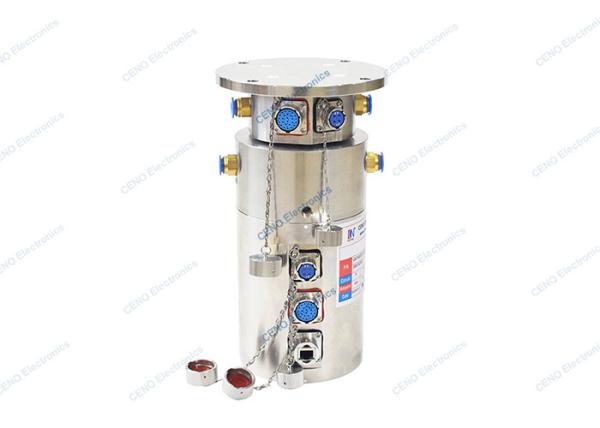

    1000m Ethernet Signal Pneumatic Rotary Joint Union SUS 316

    Integrated Air Slip Ring with 1000M Ethernet Signal Pneumatic Rotary Union


    QCN0203-04P2-25S-01EG is CENO new product integrated slip ring which combine electrical power, Ethernet signals and one channel pneumatic for industrial automatic system. The integrated pneumatic / hydraulic slip ring is prevent tubes winding problem well, and can provide 1~24 pneumatic passage and hundreds power or signals. As a competent partner for customized rotary joints, most integrated slip ring of CENO products can be modified to meet specific requirements, for more information please contact us.


    Features

    • Combine Electrical Ethernet signal & pneumatic
    • Different sealing forms and boundary can be selected
    • Can be integrated various data

    Applications

    • Automatic machine
    • Sealing structural machine
    • Machine tooling
    • Machine engineering
    • Medical equipment

    Optional

    • Circuit, Voltage, Current
    • Channels, air or liquid
    • Contact / Housing Materials
    • Sealing forms
    • Working speed

    Specification

    Current & Circuits4circuits*10A; 25circuits*5A; 1circuit*Gigabit Ethernet signal
    Rating Voltage0~24 VAC/VDC
    Dielectric strength≥300VAC@50Hz
    Isolation resistance≥100MΩ@100VDC
    Contact resistance wave range≤30mΩ (50rpm)
    Rotary Torque≤3N*m
    Contact materialPrecious Metal
    Housing materialSUS 316
    Working temperature-20°C~+60°C
    Working humidity0~ 95%
    Protection GradeIP54
    Operating speed0~10rpm
    Lead wire size3*Plugs
    Lead wire lengthRotor:300mm; Stator:300mm
    External diameterØ130mm
    InstallationFlange installation
    Rotary Joints
    Channels1 channels * gas
    Interface sizeØ12mm tube (G 3/8”)
    Pressure Max6.5Bar

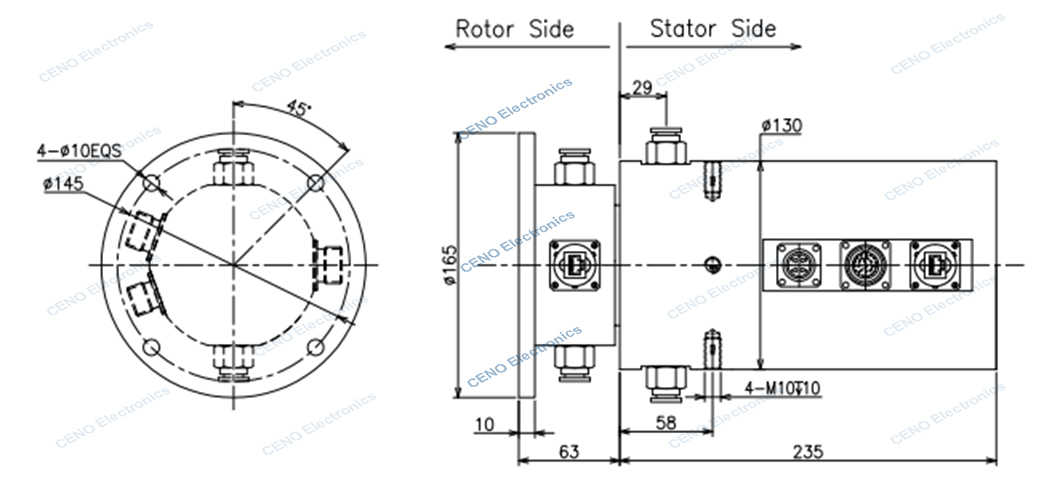

    Outline Drawing


    Our Service

    1. Reply inquiry in 24 hours.

    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

    3. Answer your question detailed.

    4. Solved the problem with you during using our products.

    5. Samples will be offered to you for our future cooperation.


    FAQ


    1. What do we do?

    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.


    2. How long have we been in the business?

    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.


    3. What is a slip ring?

    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.


    4. How do I choose a slip ring?

    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.


    5. Do you offer custom slip rings?

    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
