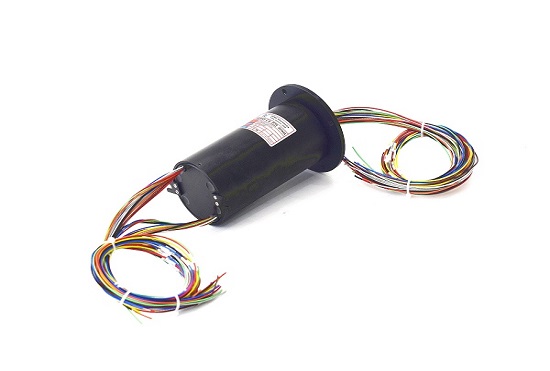

    3000 Rpm High Speed Slip Ring Flange Installation Way For Roation Table

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-35P-GS
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union, L/C
    Supply Ability : 1000pcs per month
    Delivery Time : 1 weeks
    • Product Details
    • Company Profile

    3000 Rpm High Speed Slip Ring Flange Installation Way For Roation Table

    3000 Rpm High Speed Slip Ring Flange Installation Way For Roation Table


    0~3000 rpm high speed slip ring flange installation way,aluminium housing metarial,used for high speed roation table.


    Slip ring is designed to use to transmit power, signal or data, pneumatically or hydraulically from stationary to a rotating platform.CENO high speed slip rings are demand very high accurate tolerances of the rotors, bearing space, high request of the concentricity of the rotors with other related parts. Also we have special ring shape and size of the rings to grantee the low rate of the wear out.ECN000-35P-GS with high speed up to 3000rpm,compact inner structure, stable electrical and signal performance, low friction and torque, longer lifetime.The high speed slip ring widely used for railway applications, helicopter,high speed roation table and test equipment.CENO also can provide different solutions according to customer’s requirements, the inner hole size can be customized from 3mm to 980mm. please contact with us if you have any question about slip ring ,we will reply you as soon as possible .





    Features

    • Stable transmission
    • High speed 3000rpm
    • Smooth running
    • 360°continuous rotation
    • Low electrical noise




    Applications

    • Test equipment
    • Lab RD testing bench
    • High speed roation table
    • Machinery manufacturing
    • Automation equipment
    • Inspection instrument
    • High-speed train




    Optional

    • Working speed
    • Signal type & current rating
    • Current & ring numbers
    • Integrate various signal
    • IP protection grade





    Specification

    ECN000-35P-GSSpecification
    Circuits & Current35 rings @ 1A
    Voltage0~220VAC/VDC
    Dielectric strength≥500V@50Hz
    Insulation resistance≥500MΩ@500VDC
    Operating speed0-3000 rpm
    Working temperature-20℃~+60℃
    Contact materialPrecious metal
    Housing materialAluminum alloy
    IP gradeIP51
    Installation wayFlange







    Outline drawing









    Why with CENO
    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
