    25.4mm Inner Bore 1000M Ethernet Slip Ring With Precious Metail Contacts

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN025-02P-03P3-01EG
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    25.4mm Inner Bore 1000M Ethernet Slip Ring With Precious Metail Contacts

    25.4mm Inner Bore 1000M Ethernet Slip Ring With Precious Metail Contacts

    1000M Ethernet slip ring with 25.4mm inner bore,aluminium housing with precious metail contacts,used for turntable equipment.


    CENO provide customized Ethernet slip ring for automatic machine and equipment, we can provide100M Ethernet and 1000M Ethernet slip ring, with stable transmission, no signal crosstalk. Our signal shielding technology is very good.The Ethernet slip ring can be combined with electric power, other type of signal, datas, gas, liquid etc.Furthermore, they are water-proof, pressure-proof, longlife time & vibration resistant. Customizable lead wires and connectors support any plug-in including flying lead.the inner hole size also can be customized from 3mm-980mm. It’s widely used for robotics,sensors,packaging machine,oil well, measurement instruments,cameras and medical equipment.ECN025-02P-03P3-01EG integrated 5 rings of power and 1 group of 1000M Ethernet ,it’s can be integrated other signal type also .Any special demands just contact with us .Any special request please contact with us ,our professional engineer group will provide the best solution to you.


    Specification

    ECN025-02P-03P3-01EGSpecification
    Circuits & Current2*25A,3*15A,1*1000M Ethernet
    Voltage0~380VAC / VDC
    Dielectric strength

    ≥500V@50Hz (power)

    ≥300V@50Hz (signal)

    Insulation resistance

    ≥500MΩ@50VDC (power)

    ≥100MΩ@50VDC (signal)

    Operating speed0-300 rpm
    Working temperature-20℃~+60℃
    Contact materialPrecious metal
    Housing materialAluminum alloy
    Inner bore25.4 mm
    IP gradeIP51
    Installation wayShaft mounting




    Features

    • 1000M Ethernet signal
    • Long lifespan
    • Compact structure
    • High transmit performance
    • Low electrical noise


    Applications

    • Radar equipment
    • Medical equipment
    • Test equipment
    • Turntable equipment




    Optional

    • Circuits number
    • IP protection grade
    • Through bore size
    • Signal type & current rating

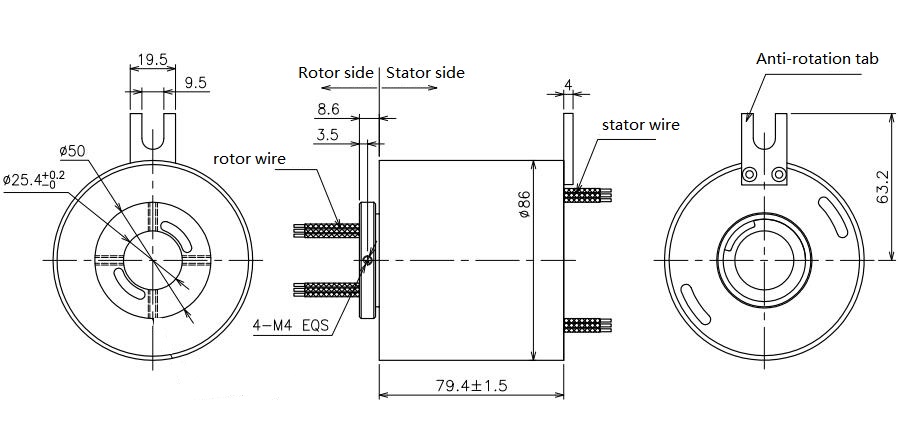

    Outline Drawing


















    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof
    Single channel fiber optic rotary joint 6.8mm OD stainless steel

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
