    Transmit 15A Through Hole Slip Ring 70mm Inner Bore For Medical Equipment

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN070-02P3
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

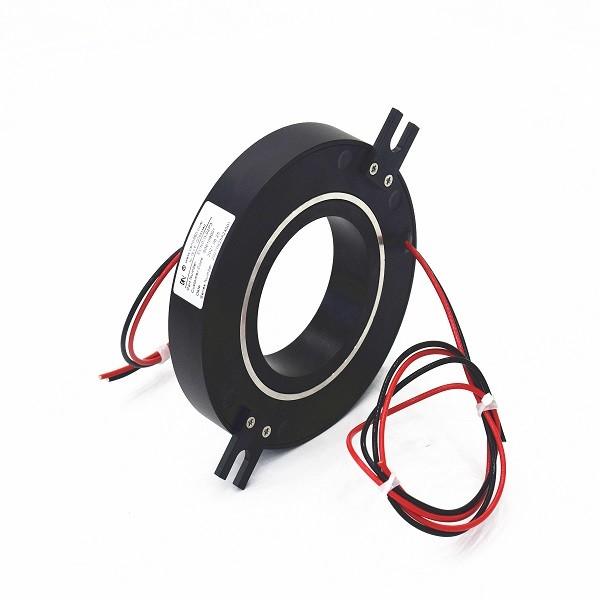

    Transmit 15A Through Hole Slip Ring 70mm Inner Bore For Medical Equipment

    Transmit 15A Through Hole Slip Ring 70mm Inner Bore For Medical Equipment


    Reliable performance through hole slip ring with 70mm inner bore,voltage 380VAC,working speed 80 rpm,transmit 15A,aluminium alloy housing .used for medical equipment,military industry,packaging machine.


    CENO through hole slip ring is mainly used in 360 degree continuous rotation, machine and equipments required power and signal continuous transfer: it can be used in all kinds of wrapping packaging machine, automatic soft bag vertical sealing machine, automatic welding equipment etc. which need 360 degree rotation for conducting or transmitting various control signals. ECN070-02P3 with inner diameter 70mm ,the inner bore size also can be customized from 3mm to 980mm. The inner hole can pass through the drive shaft, gas-liquid passage, it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints.We can provide you with professional design solutions according to the number of wires, current, voltage, signal type, wire length, installation size, rotation speed, working temperature, protection level, etc. , customized service available.Any special requirements,please contact us by email sales@ceno360.com.



    Specification


    ECN070-02P3Specification
    Circuits & Current2*15A
    Voltage0~380VAC/VDC
    Dielectric strength≥1000V@50Hz
    Insulation resistance≥500MΩ@500VDC
    Electrical noise≤ 30mΩ (50 rpm)
    Operating speed0-80 rpm
    Contact materialPrecious metal
    Housing materialAluminum alloy
    IP gradeIP54
    Through hole size70mm
    Working temperature-20~+60℃



    Features

    • Customized design
    • Reliable performance
    • Working speed 0~80 rpm
    • Through hole size 70mm

    Applications

    • Packaging machine
    • Medical equipment
    • Offshore applications
    • Military industry



    Optional

    • Through hole size
    • Current & ring numbers
    • Signal type
    • IP protection grade
    • Contacts material

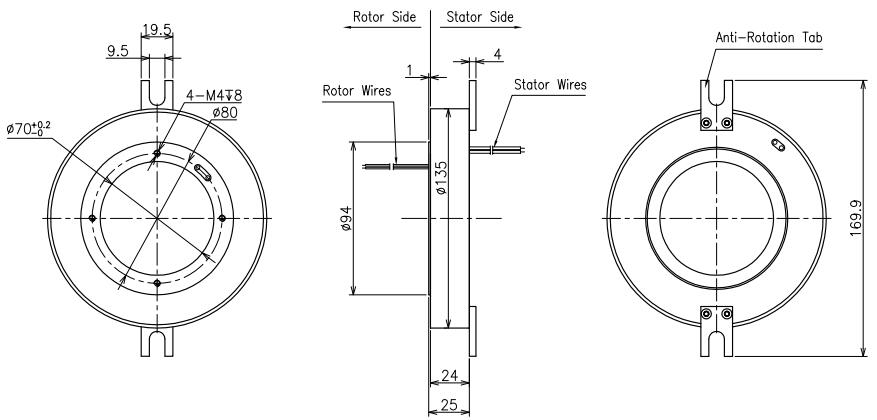

    Outline Drawing










    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof
    Single channel fiber optic rotary joint 6.8mm OD stainless steel

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
