    Chemical Pharmacy Signal Pneumatic Air Rotary Union With 2 Channel Gas

    Ask Lasest Price
    Brand Name : CENO
    Model Number : QCN0201-48S
    Certification : ISO9001,CE,RoHS
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

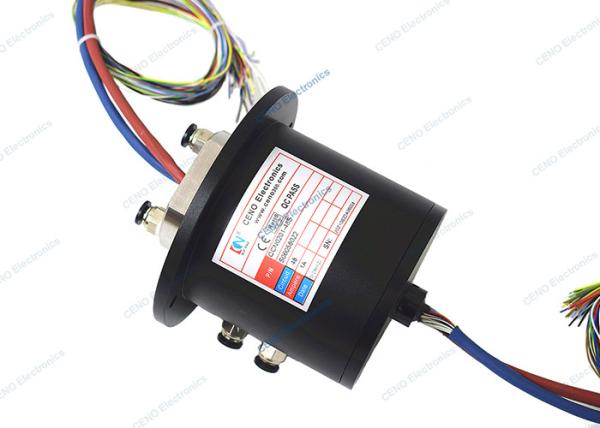

    Chemical Pharmacy Signal Pneumatic Air Rotary Union With 2 Channel Gas

    Chemical Pharmacy Signal Pneumatic Air Rotary Union With 2 Channel Gas


    Power,signal+Pnuematic rotary joint with 2 channel gas,pressure 6Bar,also integrated 48 rings signal, with gold to gold contacts,used in chemical pharmacy,Plastic fiber manufacturing.


    Electric slip ring and pneumatic or hydraulic rotary unions combined slip ring is designed for some special applications that require both electric ring and pnuematic or hydraulic rotary unions. CENO takes its own technical advantages to developed this kind of slip ring, which is more convenient for users in installation and operation.This kind of slip-ring can be integrated with current and signal of different specifications according to specific requirements, and pnuematic or hydraulic rotary union can be selected for different types base on different applications requirement.QCN0201-48S integrated 48 rings of signal & 2 channels for gas.Gold to gold contacts can make sure the high performance and longer lifetime.The number of electric circuits can reach hundreds, and the gas and liquid channels can reach 16 channels.External dimension and installation method can be customized.


    Features

    • Gold to gold contacts

    • Stable performance

    • Flange installation

    • Air pressure 6 Bar


    Applications

    • Chemical pharmacy

    • Medical equipment

    • Plastic fiber manufacturing

    • Machinery manufacturing


    Optional

    • Cirtuit channel
    • Pressure size
    • Signal type
    • Connector specification
    • Current rating

    Specification


    QCN0201-48SSpecification
    Circuits & Current48*1A,2 channel*Gas
    Voltage0~24VDC
    Dielectric strength≥500V@50Hz
    Insulation resistance≥100MΩ@100VDC
    Gas pressure6Bar
    Gas channel2 channel
    Operating speed0-80 rpm
    Contact materialGold to gold
    Housing materialAluminum alloy
    IP gradeIP54

    Outline Drawing



    Our Service

    1. Reply inquiry in 24 hours.

    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

    3. Answer your question detailed.

    4. Solved the problem with you during using our products.

    5. Samples will be offered to you for our future cooperation.


    FAQ


    1. What do we do?

    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.


    2. How long have we been in the business?

    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.


    3. What is a slip ring?

    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.


    4. How do I choose a slip ring?

    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.


    5. Do you offer custom slip rings?

    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
