    Compact 380V Through Hole Electrical Rotary Joint With 12.7mm Hole

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN012-03P2
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Compact 380V Through Hole Electrical Rotary Joint With 12.7mm Hole

    Compact 380V Through Hole Electrical Rotary Joint With 12.7mm Hole


    Through hole electrical rotary joint with 12.7mm hole,300rpm working speed,aluminium housing,used for display table,medical machine,military industrial and process control equipments.




    A through hole slip ring can be used in any electromechanical system that requires continuous rotation while transferring power and or data.Slip ring is also called a rotary electrical joint,collector,commutator or swivel.Slip ring can improve system performance by simplifying operation and eliminating damage prone wires.ECN012-03P2 provides an economical,readily available solution when a compact through bore configuration is required.This unit provides a 12.7mm through bore for routing hydraulic or pneumatic lines and a compact 56mm outside diameter for minimal space applications.It’s can integrated Ethernet,USB2.0, HDMI,fieldbus signal.CENO can provide other customized solutions according customer’s requirements.



    Specification


    ECN012-03P2 Specification
    Rings3*10A
    Voltage0~230VAC/VDC
    Electrical noise≤30mΩ(50rpm)
    Dielectric strength≥1000V@50Hz
    Insulation resistance≥500MΩ@500VDC
    Operating speed0-300 rpm
    Contact materialPrecious metal
    Housing materialAluminium alloy
    Working temperature-20℃~+60℃
    IP protection gradeIP51
    Through hole size12.7mm



    Features

    • 12.7mm inner diameter
    • Smooth rotation
    • High performance

    • Compact structure



    Applications

    • Exhibit Display machinery
    • Packaging machine
    • Medical equipment
    • Rotation tab
    • Process control equipment
    • Military industrial
    • Rotary index tables
    • Process control equipment


    Optional

    • Through hole size
    • Current rating
    • Signal type
    • IP protection grade

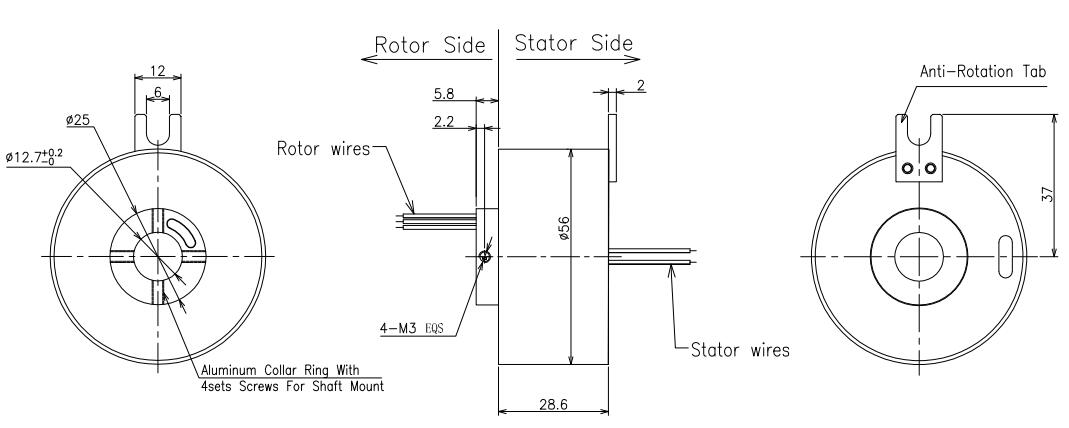

    Outline Drawing










    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

    Certification
    ISO9001,CE,RoHS,UL,Explosion-proof
    Single channel fiber optic rotary joint 6.8mm OD stainless steel

    CENO Advantage
    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Service CENO provides
    24 hours,7days consultant service.
    Mass and customized production.
    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
