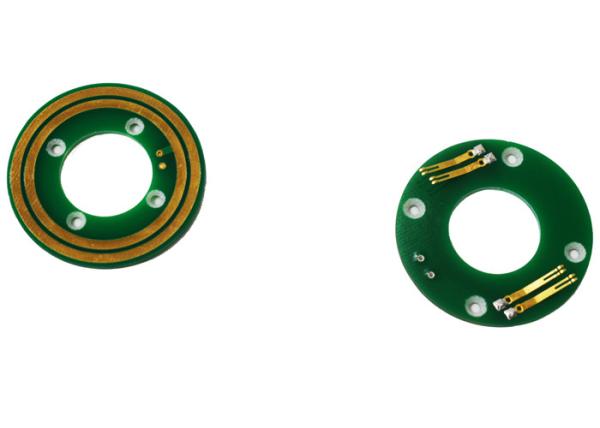

Rail System Pancake Slip Ring , Separate Slip Ring 6mm Slim Thickness

CENO pancake slip ring is divided into two classifications,PCN and PSCN.
CENO pancake slip rings are designed for some equipment which vertical space is limited while horizontal
space is less restrictive.This type slip ring provides ultrathin thickness for special
limited installation space.Thickness could be up to 4mm.This kind pancake slip ring
design with through hole or no hole are optional.
One is integraltype and another one is separate type.We also called pancake slipring as platter slip ring
because of its outline.Extremely thin is the feature of this series slip ring.It is very
welcomed by those applicatons which installation space is limited in height.Platter slip ring
distributes the rings in radial direction to save axial space.Proper contact between two discs
is critical design consideration.Besides the thin feature,light weight is also one advantage in
separate pancake slip rings.

Features

◆ Economy cost

◆ Reliable contact between brush and ring
◆ Flexible installation
◆ Suitable for signal and power transfer of rotating devices or instrument
◆ Compact size

◆ Slim thickness

Typical application

◆ Lamp lighting
◆ Rotary stage
◆ Rotary lamp box
◆ Rail system

Specification

PSCN046-02P1 Specification		Picture
Type	Separate PCB type
Number of ring	2
Operating speed	0-100rpm
Current Rating	2x5Amp
Voltage	380VAC/DC
Electrical noise	30 milliohms max.
Operating temperature	-20~+60℃
Contact material	Precious metal
Material	PCB
Thickness after assembly	6mm

Outline drawing
