IP66 Waterproof Stainless Steel Custom Slip Ring 50RPM

CENO Electronics Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap IP66 Waterproof Stainless Steel Custom Slip Ring 50RPM from wholesalers

    Buy cheap IP66 Waterproof Stainless Steel Custom Slip Ring 50RPM from wholesalers
    • Buy cheap IP66 Waterproof Stainless Steel Custom Slip Ring 50RPM from wholesalers

    IP66 Waterproof Stainless Steel Custom Slip Ring 50RPM

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-02P-04S-02F- IP66
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    IP66 Waterproof Stainless Steel Custom Slip Ring 50RPM

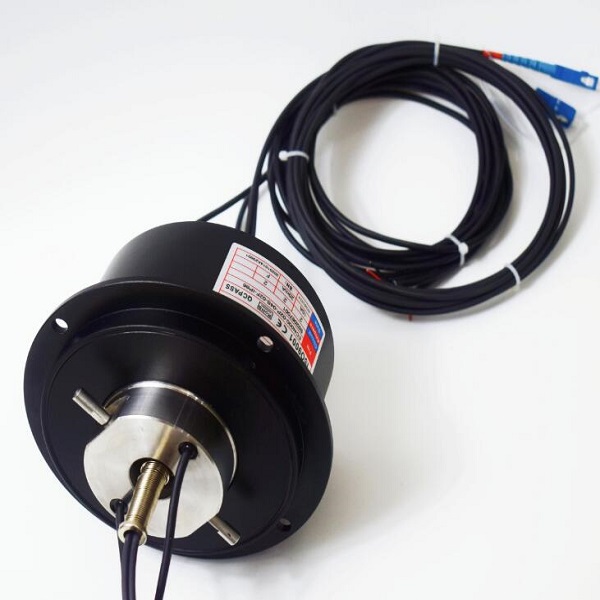

    Stainless Steel 50rpm Waterproof IP66 Customized Slip Ring


    Waterproof IP66 Slip Ring with power,signal,2 channles fiber optic ,used for Drilling platform,Oil well,Aluminium alloy housing


    This is a customized slip ring with power ,signal ,fiber optical ,it’s also a waterproof slip rings.designed specifically for underwater operation and waterproof work .according to working environment, the waterproof slip ring could be divided into multiple protection grade, such as IP65,IP66,IP67,IP68 and so on.


    Stable performance and low torque ,working temperature is -20°C~ +80°C.Any special request please contact with CENO,we will provide the best solution.




    Specification


    ECN000-02P-04S-02F- IP66
    Circuits & Current2*2A,2*20mA,2*Fiber optic
    Voltage

    500VAC (power)

    24VDC (signal)

    Electrical noiseMax 30mΩ (50rpm)
    Dielectric strength

    ≥1500V@50Hz (power)

    ≥300V@50Hz (signal)

    Insulation resistance

    ≥500MΩ@500VDC (power)

    ≥100MΩ@100VDC (signal)

    Operating speed0-50 rpm
    Contact materialPrecious metal
    Housing materialAluminium alloy ,stainless steel
    IP protection gradeIP66
    Fiber channels2 channels (SC connector)
    Fiber typeSM & MM
    Wave length

    1310/1550 nm (SM)

    850/1310 nm (SM)


    IP Protection reach to IP68


    Features

    • IP65,IP66,IP67,IP68 protection grade optional
    • Precious contacts
    • Long service life
    • Integrate 2 Fiber Optic
    • Maintenance-free
    • Easy to install


    Applications

    • Filling machine
    • Drilling platform
    • Oil well
    • Ship offshore equipment
    • Radar system
    • Industrial automation equipment
    • Medical equipment
    • Wind power equipment
    • Test equipment
    • Display equipment

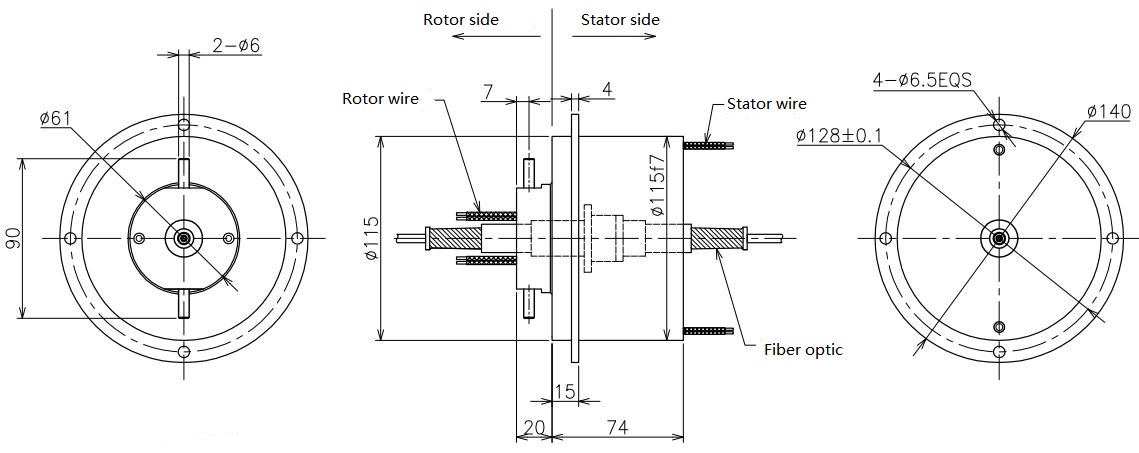

    Outline Drawing




    Our Service

    1. Reply inquiry in 24 hours.

    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

    3. Answer your question detailed.

    4. Solved the problem with you during using our products.

    5. Samples will be offered to you for our future cooperation.


    FAQ

    1. What do we do?

    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.


    2. How long have we been in the business?

    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.


    3. What is a slip ring?

    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.


    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel

    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
