    Large Size Industrial Slip Ring Inner Bore 280mm 6x40A 8xSignal Coper Graphite IP54

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN-C-280-06P-08S
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    Large Size Industrial Slip Ring Inner Bore 280mm 6x40A 8xSignal Coper Graphite IP54


    Large size slip ring inner bore 280mm 6*40A, 8*Signal coper graphite IP54


    ECN-C-280-06P-08S is a special large size slip ring in CENO company for it’s large inner diameter size, stably transmit ability and the Protection grad IP54, that can be optioned as user request. There are 8circuits of signals, 6 circuits of 40A electrical signals, and the voltage is 240VAC, IP protection grade is IP54 and optionally, contact material is copper graphite and the housing material is stainless steel & aluminum alloy. There are two ways to install this large size slip ring s, vertical installation or horizontal installation with scheduled maintain. AS a typical product ECN-C-280-06P-08S slip ring is mainly used on food automation equipment, sewage treatment, large material transfer equipment for its good rotation and stable transmission performance, and it can be fitted directly to the center of the rotation to resolve the transmission problem of current & signal. CENO product process allow the slip ring to be built in an assembly line fashion that save shipping time and cost.


    Specification

    ECN-C-280-06P-08S

    Current8circuits*signal; 6circuits*40A
    Voltage240VAC
    Dielectric strength≥500VAC@50Hz
    Insulation resistance≥100MΩ@100VDC
    Contact resistance wow≤70mΩ(50rpm)
    Operating speed2~8 rpm
    Contact materialCopper graphite
    Housing materialStainless steel / Aluminum alloy
    Operating temperature-20~+60℃
    IP protection gradeIP54
    Through hole sizeØ280mm
    Lead wire length

    Rotor : 1000mm

    Stator : 1000mm

    Lead wire size

    8 core twisted pair shield wire (0.2mm²)

    FLRY-B 6.0mm² wire

    Installation wayVertical installation or Horizontal installation

    Features

    • High protection grade

    Long lifespan, maintenance-free

    Various type of signal could be integrated


    Applications

    Material delivery equipment

    Sewage treatment

    Industrial automatic control


    Optional

    Circuit number & Current

    Diameter size

    Connector type

    IP protection grade

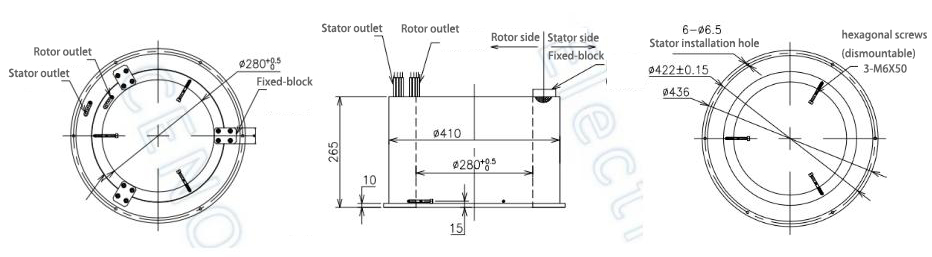

    Outline drawing


    Our Service

    1. Reply inquiry in 24 hours.

    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

    3. Answer your question detailed.

    4. Solved the problem with you during using our products.

    5. Samples will be offered to you for our future cooperation.


    FAQ


    1. What do we do?

    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.


    2. How long have we been in the business?

    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.


    3. What is a slip ring?

    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.


    4. How do I choose a slip ring?

    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.


    5. Do you offer custom slip rings?

    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
