    Low temperature -55~+85℃ aerospace high altitude Fiber Optical Rotary Joint

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-02P-02P1-01F
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

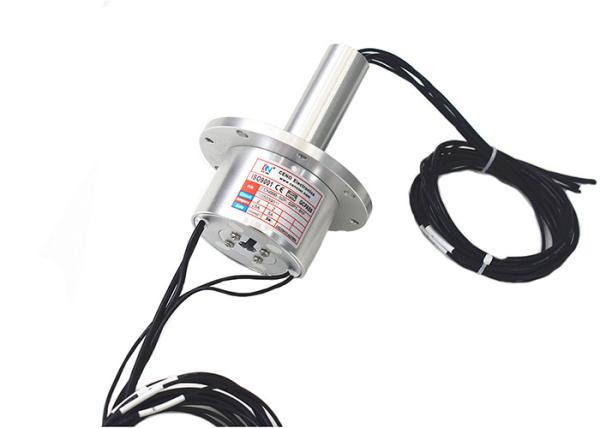

    Low temperature -55~+85℃ aerospace high altitude Fiber Optical Rotary Joint


    Low temperature -55~+85℃ aerospace high altitude Fiber Optical Rotary Joint


    ECN000-02P-02P1-01F is one of CENO’s Fiber Optic Rotary Joints, and is called Fiber-electric slip ring too. It can be used in any electric mechanical system that requires unrestrained, continuous rotation while transferring power, data or Fiber signal from a stationary to a rotating structure when 360° rotating, such as Microwave communication, HD video transmission system, sensor signal measurement, medical equipment, radar and video monitoring system etc. CENO will continue to develop our abilities and focus on creating new technology that drives change, meets the needs of our partners and challenges our team.


    Specification

    ECN000-02P-02P1-01F
    PowerSpecificationFiber channel1 channel
    Current & Circuits2 Circuits*25A; 2Circuits*5AFiber type9/125um
    Rating Voltage0~800 VDCWave length1310~1550nm
    Dielectric strength≥ 3000VAC@50Hz (Between tow circuits)Insert loss≤1.0dB
    Insulation resistance≥800MΩ@1000VDCInsert loss WOW<0.25dB
    Contact resistance fluctuationMax 20mΩ (50rpm)Return loss≥40dB
    Lead wire

    AWG16# silicon high voltage wire (UL3239)

    AWG20# silicon wire(UL3239)

    Maximum Optical power23dB
    Working speed0-250 rpmLead wire length1000mm at each end
    Operating temperature-55~+85℃Encapsulated type3mm tail fiber sheath at both ends
    Working Humidity60%RHInterface typeFC/PC
    Contact materialPrecious metal
    IP protection gradeIP54
    Housing materialNatural color of aluminum alloy anodized
    Install way

    Stator end fixed with flange,

    Rotor end flat position drive.


    Features

    • Stable data transmission, aerospace

    • High / Low temperature -55~+85℃

    • Working normally at high altitude of 1,0000 meters


    Applications

    • High definition video surveillance

    • Serial communication

    • Industrial automatic control

    • Sensor signal measurement


    Optional

    • Circuit number & Current rating

    • Wave length & Fiber type

    • Working speed & IP Grade

    • Interface type


    Outline drawing



    Our Service

    1. Reply inquiry in 24 hours.

    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

    3. Answer your question detailed.

    4. Solved the problem with you during using our products.

    5. Samples will be offered to you for our future cooperation.


    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
