    36 Group High Protection Slip Ring 20rpm Speed Low Electrical Noise IP65

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-03P2-03P1-02PE-28S
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    36 Group High Protection Slip Ring 20rpm Speed Low Electrical Noise IP65


    36 Group High protection Slip Ring 20rpm Speed Low Electrical Noise IP65


    ECN000-03P2-03P1-02PE-28S is one of high protection rotary joints from CENO electrical company for automation. There are 3circuits of 7Ampere, 3 circuits of 2 Ampere, 28 circuits of signal and 2 circuits of PE, it adopts advanced fiber brush multi point contact, long life, low friction. It can be used on dust prevention and waterproofed to IP65 if the lid of the machine is correctly sealed.The contact material is precious metal and the housing material is stainless steel. Mounting flanges can be designed to suit customer’s needs. And the protection grade, working speed, current rating& circuit number and Signal type are all optional.


    Features

    • Stable data transmission

    • High protection

    • The solution can combine hybrid of power, digital signal,fiber optic,gas-liquid


    Applications

    • Filling machine

    • Medical equipment

    • Industrial automatic control


    Optional

    • Signal type

    • Circuit number & Current rating

    • Working speed

    • IP protection grade


    Specification

    ECN000-03P2-03P1-02PE-28S

    Current & Circuits

    3 Circuits*7A; 3 Circuits*2A

    2 Circuits*PE; 28 Circuits*signal

    Rating Voltage400VAC;24VAC
    Dielectric Strength

    ≥1000VAC@50Hz (7A ; 2A)

    ≥500VAC@50Hz (PE ; Signal)

    Insulation Resistance≥300MΩ@ 100VDC
    Electrical NoiseMax 15mΩ (50rpm)
    Lead Wire SizeAWG1 7;AWG22#;AWG26#Wire Teflon8 UL
    Lead Wire Length

    Rotor: 4000mm

    Stator: 4000mm

    Working Speed0~20rpm
    Contact MaterialPrecious Metal
    Housing MaterialStainless Steel
    Working Temperature- 20°C~+60"C
    Working Humidity80%RH
    Protection(IP Grade)IP65

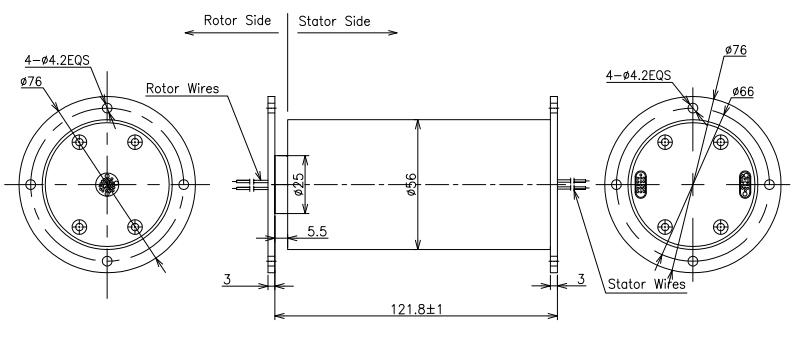

    Outline drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
