158 circuits Multi Channel large size industry Slip Ring with IF
signals low noise
ECN000-128P-30S is a multi channel slip ring from CENO electrical
company with 158 channels, there are 24 circuits of 10Amp, 105
circuits of 2Amp and 30 circuits of IF signals in this industry
slip ring, and it’s large size slip ring too, the external diameter
is 275mm and the length of the shell is 726mm. In CENO company
Multi-channel slip ring is meaning the slip ring with more than 50
channels, the kind of multi-channel slip ring can reach more than
500 channels. It could integrate small or big current, analog
signal, digital signal, radio frequency and fiber optic. This
multi-channel slip ring gets long lifespan characteristic.
Multi-channel slip ring produced by CENO has optional operating
speed, even up to 2000rpm.
Specification
| ECN000-128P-30S | |
| Current & Circuits | 158 circuits electric power and signals |
| Rating Voltage | 0~380VAN/VDC |
| Dielectric Strength | ≥1000VAC@50Hz(Power) ≥300VAC@50Hz(Signal) |
| Insulation Resistance | 500MΩ@500VDC(Power) 100MΩ@300VDC(Signal) |
| Electrical Noise | Max 10mΩ (50rpm) |
| Lead Wire Size | AWG20#(Soft Wire Teflon8 UL) AWG1 6#(Soft Wire Teflong UL) Two-Core Twisted Shielded wire(AWG12#) RG 316/RG179 |
| Resistance Static Value | Max 100mΩ |
| Work Torque | ≤3N*m |
| Working speed | 0~50rpm |
| Net Weight | 40Kgt 15% |
| Contact Material | Precious Metal |
| Housing Material | Aluminum alloy |
| Rotation way | Flange installation |
| Working Temperature | - 33°C~+80"C |
| Working Humidity | 60%RH |
| Protection(IP Grade) | IP51 |
| IF Parameters |
| Frequency Range | DC-40MHz |
| Insertion Loss | <0.7dB |
| Insertion loss - WOW | <0.1dB |
| VSWR | <1.3 |
| Isolation | >60dB |
| Return Loss | >17dB |
| Phase Deviation (different Channels ) | <1° |
| Phase Deviation (same channels) | <1.5° |
Features
• Transmit Stably
• Large size & multi channels
• Long lifespan characteristic
• Integrate serious current and signals
Applications
• Military industry
• Marine engineering equipment
• Industrial automatic control
Optional
• Circuit number
• Current rating
• Connector type
• IP protection grade

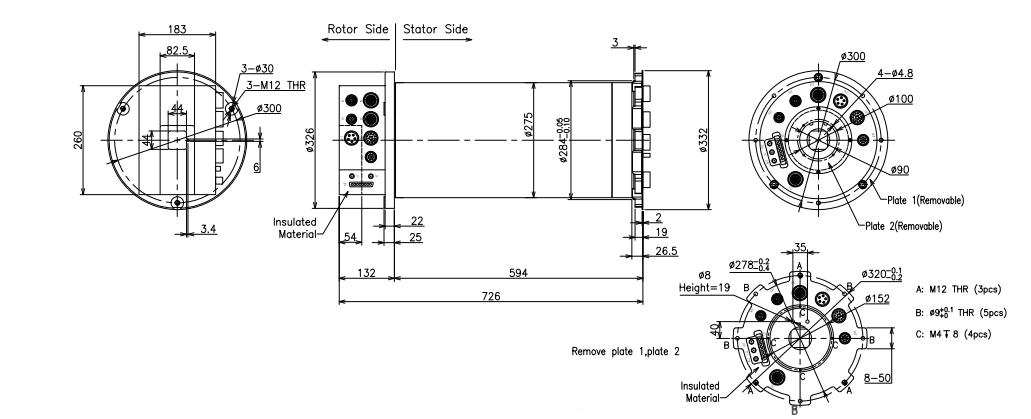

Outline Drawing
