    High Temperature 120°C Industrial Slip Ring Through Hole Diameter 96mm IP56

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN096-15P1-IP56
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    High Temperature 120°C Industrial Slip Ring Through Hole Diameter 96mm IP56


    Industry Slip ring high temperature 120°C through hole Ø96mm IP56


    ECN-096-15P1-IP56 is one of the through hole industry slip rings in CENO company, there are 15 circuits for 5A, rating voltage is 380VAC/VDC and the through bore size is Ø96mm in this industry slip ring. The housing material is Aluminum alloy + stainless steel, contact material is precious metal, it can be working normally at the speed from 0 to 50rpm within the temperature -20°C ~ +120°C. Most of the specification is optional, such as current, circuits, voltage, Material, working speed and temperature etc according to CENO’s customer requests. Due to it’s suitable the high temperature and high humidity working environment, always used on the sewage treatment, food processing machinery, Filling machine, Marine platform.


    Features

    • Large inner diameter Ø96mm ,

    • Resistant to high temperature and high humidity

    • Most of specification is optional


    Applications

    • Winding machine

    • sewage treatmen

    • Marine platform

    • Automation in industry


    Optional

    • Circuit number & Current

    • Working speed

    • Protection grade

    • Signal type & Material


    Specification


    ECN096-15P1-IP56

    Current & Circuits15 circuits * 5A
    Rating Voltage380VAC/VDC
    Dielectric strength≥1000VAC@50Hz
    Isolation resistance≥500MΩ@500VDC
    Contact resistant floatMax 30mΩ (50rpm)
    Lead wire sizeGuest supply
    Lead wire lengthRotor : 8000mm; Stator : 5000mm
    Operating speed0~50rpm
    Contact materialPrecious Metal
    Housing materialAluminum alloy + Stainless steel
    Working temperature-20°C ~ +120°C
    Working humidity<60%
    Protection gradeIP56
    Installation wayFix the rotor end to the main shaft guest supplied with screws
    Through hole diameter

    Ø96mm

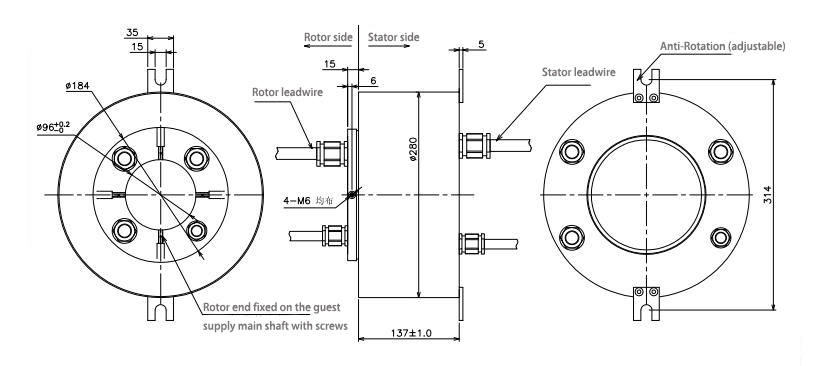

    Outline drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
