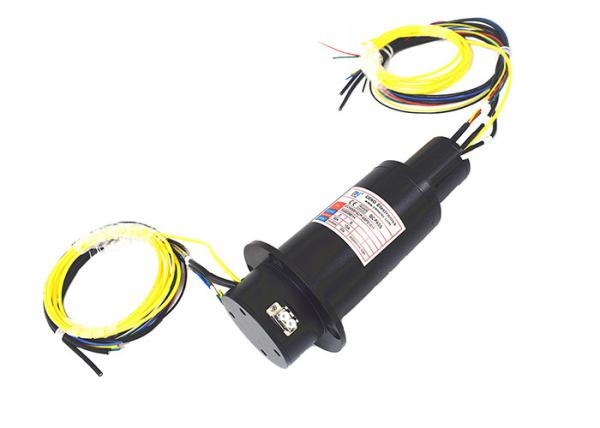

    Integrated Fiber Optical Rotary Joint 1 Channel With Wavelength 1310~1550nm

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-02P-05P2-01F
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 500pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Integrated Fiber Optical Rotary Joint 1 Channel With Wavelength 1310~1550nm

    Integrated fiber optical rotary joint 1 channel with wavelength 1310~1550nm


    ECN000-02P-05P2-01F is an integrated fiber optical rotary joint from CENO electronics company. There are 2 circuits for 30A, 5 circuits for 10A and 1 channel for Fiber optic with wavelength 1310/1550nm. It’s working stably at the speed of 0~300rpm within the temperature from -40°C to +70°C. And it’s mainly use in the damp and hot, many vibrations, easy to bread mold, salt spray test harsh environments.


    Specification


    ECN000-02P-05P2-01FSpecification
    Current & Circuits

    2 circuits * 30A, 1500 VDC;

    5 circuits * 10A, 48VDC

    Rating Voltage1500 VDC / 48VDC
    Dielectric strength

    2 circuits 30A : ≥ 3000VDC@50Hz.60s.1mA

    5 circuits 10A : ≥ 500VDC@50Hz.60s.1mA

    Isolation resistance≥500MQ@1000VDC
    Contact resistance floating≤10mΩ
    Lead wire size

    2.5 mm²Silica gel high voltage wire

    AF-1.0mm² wire

    Lead wire length

    Rotor end: 600±20mm

    Stator end: 600±20mm

    Operating speed0~300rpm
    Contact materialPrecious metal
    Housing materialStainless steel
    Working temperature-40°C~+70°C
    Storage temperature-50°C~+80°C
    Working humidity≥95% ( without frozen )
    IP protection gradeIP54
    Working life50 ~ 80 Million rotations
    Net weight≤ 1.7 Kg

    Fiber

    Parameter

    Channel

    1

    Wavelength

    1310/1550 nm

    Fiber type

    Single mode

    Insert loss

    <2.0dB (Single mode)

    Insert variation

    <0.5dB (Single mode)

    Contact type

    Rotor : FC/PC; Stator : LC/PC

    Return loss

    >40dB (Single mode)

    Tensile strength

    3N (3m outer shell)

    Encapsulated type

    Ø3mm

    Service life

    50~80Million Rotation

    Maximum optical power

    23dBm

    Fiber pigtail length

    Rotor: 250+50mm fiber contact FC/PC

    Stator: one LC-LC Duplex fiber couple metal adapter, both of the stator ends contact LC/PC,and a length of jumper with 1.5m.


    Features

    • Integrated power & 1 cannel fiber signal

    • Transmit stably with low temperature -40°C

    • Most parameter is optional


    Applications

    • Automatic machine

    • mountain areas

    • Measuring instrument

    • the oilfield.


    Optional

    • Circuit number & Current

    • Working speed

    • Protection grade

    • Operating temperature

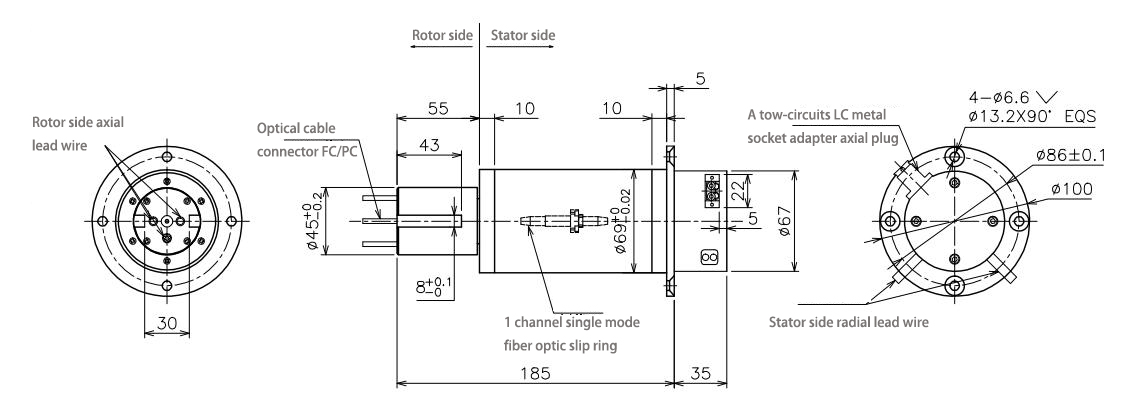

    Outline drawing
