    Carbon Brush Industry Slip Ring Low Temperature -40°C Inner Diameter 260mm

    Ask Lasest Price
    Brand Name : CENO
    Model Number : BHCN-C-260-08P-CB-DW
    Certification : CE,RoHS,ISO9001,UL
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 1000pcs per month
    Delivery Time : 1 week
    • Product Details
    • Company Profile

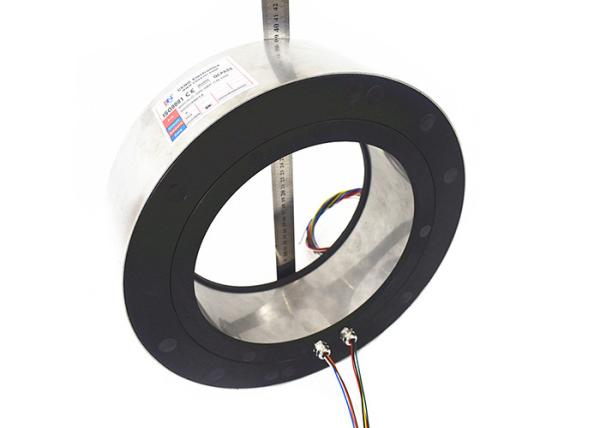

    Carbon Brush Industry Slip Ring Low Temperature -40°C Inner Diameter 260mm


    Industry slip ring carbon brush low temperature -40°C inner diameter Ø260mm


    BHCN-C-260-08P-CB-DW is a Low temperature Carbon brush Slip Ring with the operating temperature from-40°C~+60°C in CENO electronics company. There are 8 circuits for 10A in it, it can work stably with the speed from 0~8rpm, the IP protection grad is IP54. All of the circuits, working speed, protection grad and the operating temperature are optional as customer’s request. According to our customers feedback, most of the large size low temperature carbon brush slip ring is used on the cylinder, coiled tubing unit, the mines, mountain areas, the oilfield these harsh environments.


    Features

    • Large size with inner diameter Ø260mm ,

    • Working stably low temperature -40°C

    • Most of specification is optional


    Applications

    • Cylinder

    • sewage treatmen

    • Marine platform

    • The mines


    Optional

    • Circuit number & Current

    • Working speed

    • Protection grade

    • Signal type & Material


    Specification


    BHCN-C-260-08P-CB-DW

    Specification
    Current & Circuits8 circuits * 10A
    Rating Voltage1000VAC
    Dielectric strength≥2000VAC@50Hz
    Isolation resistance≥500MQ@500VDC
    Contact resistance floating≤70mΩ (on speed of 50rpm)
    Lead wire length

    Rotor end: 1000mm

    Stator end: 1000mm

    Operating speed0~8rpm
    Contact materialCopper graphite
    Housing materialStainless steel
    Working temperature-40°C~+60°C
    Working humidity< 90% (20°C)
    IP protection gradeIP54
    Through hole sizeØ260mm
    Installation wayVertical & Horizontal installation

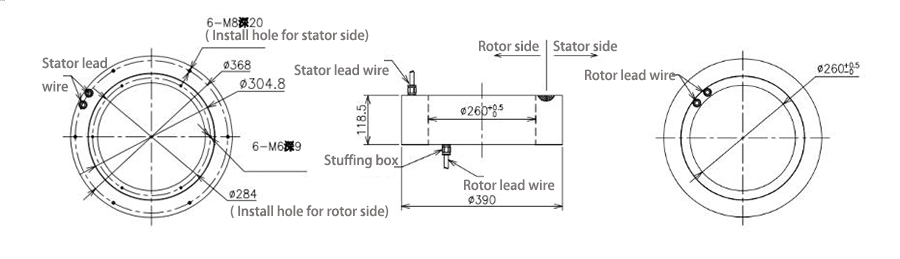

    Outline drawing



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel


    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.


    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
